Pre-Collision Braking System

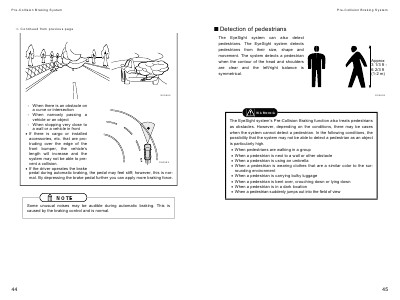

I Detection of pedestrians
The EyeSight system can also detect
pedestrians. The EyeSight system detects
pedestrians from their size, shape and
movement. The system detects a pedestrian
when the contour of the head and shoulders
are clear and the left/right balance is
symmetrical.
Approx
3 1/3 ft 6 2/3 ft
(1-2 m)
S00693
WARNING
The EyeSight system’s Pre-Collision Braking function also treats pedestrians
as obstacles. However, depending on the conditions, there may be cases
when the system cannot detect a pedestrian. In the following conditions, the
possibility that the system may not be able to detect a pedestrian as an object
is particularly high.
When pedestrians are walking in a group
When a pedestrian is next to a wall or other obstacle
When a pedestrian is using an umbrella
When a pedestrian is wearing clothes that are a similar color to the surrounding environment
When a pedestrian is carrying bulky luggage
When a pedestrian is bent over, crouching down or lying down
When a pedestrian is in a dark location
When a pedestrian suddenly jumps out into the field of view
45
