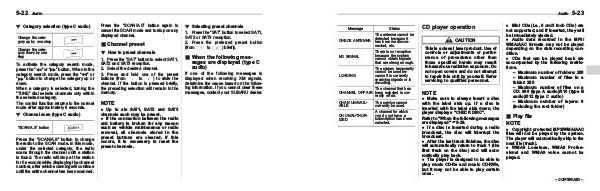

Audio
Message Status
CHECK ANTENNA The antenna cannot be
detected because it
has become discon-
nected, etc.
NO SIGNAL There is no reception
because the system
cannot obtain signals
that are strong enough.
LOADING The system temporarily
cannot be used be-
cause it is currently
receiving signals or is
decoding.
The channel that has
CHANNEL OFF AIR been selected is cur-
rently off air.
CHAN UNAVAIL-
ABLE The service cannot
currently be used.
CH UNAUTHOR-
IZED A channel for which
you do not have a
subscription has been
selected.
CD player operation
CAUTION
This is a class I laser product. Use of
controls or adjustments or perfor-
mance of procedures other than
those specified herein may result
in hazardous radiation exposure. Do
not open covers and do not attempt
to repair this unit by yourself. Refer
servicing to qualified personnel.
NOTE
. Make sure to always insert a disc
with the label side up. If a disc is
inserted with the label side down, the
player displays “CHECK DISC”.
Refer to “When the following messages
are displayed” F5-29.
. If a disc is inserted during a radio
broadcast, the disc will interrupt the
broadcast.
. After the last track finishes, the disc
will automatically return to track 1 (the
first track on the disc) and will auto-
matically play back.
. The player is designed to be able to
play music CD-Rs and music CD-RWs,
but it may not be able to play certain
ones.
5-23
. Mini CDs (i.e., 8 cm/3 inch CDs) are
not supported, and if inserted, they will
be immediately ejected.
. Audio data recorded in the MP3/
WMA/AAC formats may not be played
depending on the data recording con-
dition.
. CDs that can be played back are
accompanied by the following restric-
tions.
– Maximum number of folders: 255
– Maximum number of files in a
folder: 255
– Maximum number of files on a
CD: 999 (type A audio)/510 (type B
audio)/512 (type C audio)
– Maximum number of layers: 8
(including the root folder)
& Play file
NOTE
. Copyright protected MP3/WMA/AAC
files will not be played by the system.
The player will automatically skip to the
next file (track).
. WMA9 Lossless, WMA9 Profes-
sional and WMA9 voice cannot be
played.
– CONTINUED –
