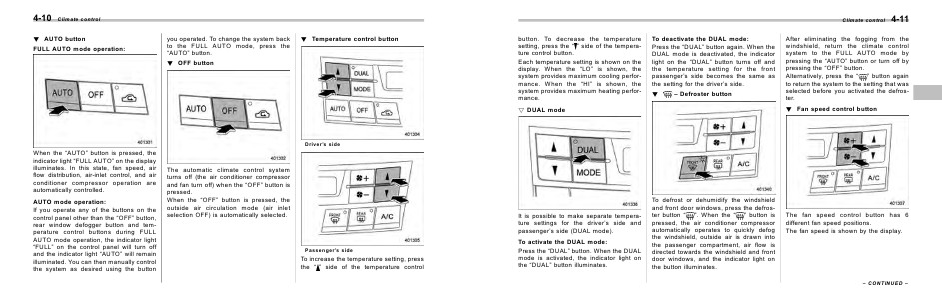

Climate control
button. To decrease the temperature
setting, press the “ ” side of the temperature control button.
Each temperature setting is shown on the
display. When the “LO” is shown, the
system provides maximum cooling performance. When the “HI” is shown, the
system provides maximum heating performance.
To deactivate the DUAL mode:
Press the “DUAL” button again. When the
DUAL mode is deactivated, the indicator
light on the “DUAL” button turns off and
the temperature setting for the front
passenger’s side becomes the same as
the setting for the driver’s side.
!
– Defroster button
! DUAL mode
It is possible to make separate temperature settings for the driver’s side and
passenger’s side (DUAL mode).
To activate the DUAL mode:
Press the “DUAL” button. When the DUAL
mode is activated, the indicator light on
the “DUAL” button illuminates.
To defrost or dehumidify the windshield
and front door windows, press the defroster button “ ”. When the “ ” button is
pressed, the air conditioner compressor
automatically operates to quickly defog
the windshield, outside air is drawn into
the passenger compartment, air flow is
directed towards the windshield and front
door windows, and the indicator light on
the button illuminates.
4-11
After eliminating the fogging from the
windshield, return the climate control
system to the FULL AUTO mode by
pressing the “AUTO” button or turn off by
pressing the “OFF” button.
Alternatively, press the “ ” button again
to return the system to the setting that was
selected before you activated the defroster.
! Fan speed control button
The fan speed control button has 6
different fan speed positions.
The fan speed is shown by the display.
– CONTINUED –
