Keys and doors
& Power window operation by
driver
Windows
WARNING
To avoid serious personal injury
caused by entrapment, always conform to the following instructions
without exception.
. When operating the power windows, be extremely careful to
prevent anyone’s fingers, arms,
neck, head or other objects from
being caught in the window.
. Always lock the passengers’ windows using the lock switch when
children are riding in the vehicle.
. Before leaving the vehicle, always remove the key from the
ignition switch for safety and
never allow an unattended child
to remain in the vehicle. Failure
to follow this procedure could
result in injury to a child operating the power window.
The power windows operate only when
the ignition switch is in the “ON” position.
2-21

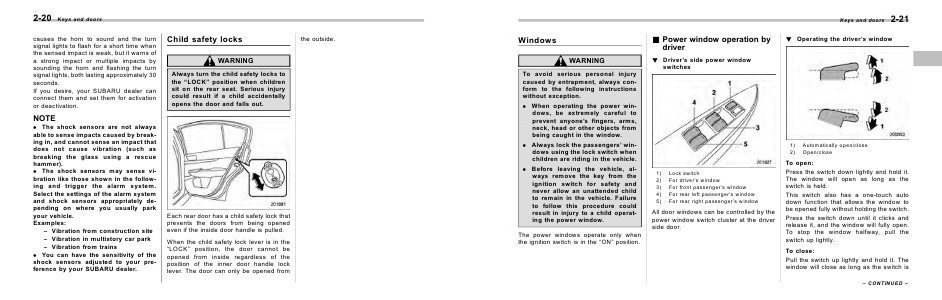

! Operating the driver’s window
! Driver’s side power window
switches
1)
2)
1)
2)
3)
4)
5)
Lock switch
For driver’s window
For front passenger’s window
For rear left passenger’s window
For rear right passenger’s window
All door windows can be controlled by the
power window switch cluster at the driver
side door.
Automatically open/close
Open/close
To open:
Press the switch down lightly and hold it.
The window will open as long as the
switch is held.
This switch also has a one-touch auto
down function that allows the window to
be opened fully without holding the switch.
Press the switch down until it clicks and
release it, and the window will fully open.
To stop the window halfway, pull the
switch up lightly.
To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
– CONTINUED –
