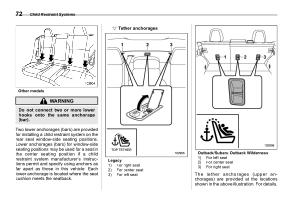

72
Child Restraint Systems
! Tether anchorages s01ag070102
Other models
WARNING
Do not connect two or more lower hooks onto the same anchorage ( bar ).
Two lower anchorages ( bars ) are provided for installing a child restraint system on the rear seat window-side seating positions . Lower anchorages ( bars ) for window-side seating positions may be used for a seat in the center seating position if a child restraint system manufacturer ’ s instructions permit and specify using anchors as far apart as those in this vehicle . Each lower anchorage is located where the seat cushion meets the seatback .
Legacy |
1 ) |
For right seat |
2 ) |
For center seat |
3 ) |
For left seat |
Outback / Subaru Outback Wilderness |
1 ) |
For left seat |
2 ) |
For center seat |
3 ) |
For right seat |
The tether anchorages ( upper anchorages ) are provided at the locations shown in the above illustration . For details ,
