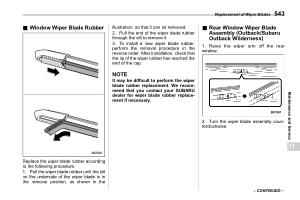

Replacement of Wiper Blades 543
& Window Wiper Blade Rubber s11az05 illustration , so that it can be removed .
2 . Pull the end of the wiper blade rubber through the slit to remove it .
3 . To install a new wiper blade rubber , perform the removal procedure in the reverse order . After installation , check that the tip of the wiper rubber has reached the end of the cap .
& Rear Window Wiper Blade Assembly ( Outback / Subaru Outback Wilderness ) s11az03
1 . Raise the wiper arm off the rear window .
NOTE
It may be difficult to perform the wiper blade rubber replacement . We recommend that you contact your SUBARU dealer for wiper blade rubber replacement if necessary .
2 . Turn the wiper blade assembly counterclockwise .
Maintenance and Service
11
Replace the wiper blade rubber according to the following procedure .
1 . Pull the wiper blade rubber until the slit on the underside of the wiper blade is in the removal position , as shown in the
– CONTINUED –
