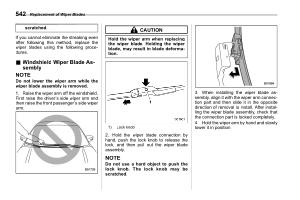

Replacement of Wiper Blades
scratched .
If you cannot eliminate the streaking even after following this method , replace the wiper blades using the following procedures .
& Windshield Wiper Blade Assembly s11az01
NOTE
Do not lower the wiper arm while the wiper blade assembly is removed .
1 . Raise the wiper arm off the windshield . First raise the driver ’ s side wiper arm and then raise the front passenger ’ s side wiper arm .
CAUTION
Hold the wiper arm when replacing the wiper blade . Holding the wiper blade , may result in blade deformation .
1 ) Lock knob
2 . Hold the wiper blade connection by hand , push the lock knob to release the lock , and then pull out the wiper blade assembly .
NOTE
Do not use a hard object to push the lock knob . The lock knob may be scratched .
3 . When installing the wiper blade assembly , align it with the wiper arm connection part and then slide it in the opposite direction of removal to install . After installing the wiper blade assembly , check that the connection part is locked completely .
4 . Hold the wiper arm by hand and slowly lower it in position .
