338

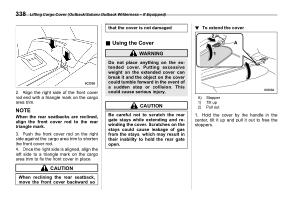

Lifting Cargo Cover ( Outback / Subaru Outback Wilderness – If Equipped )
that the cover is not damaged ! To extend the cover s06ak0101
2 . Align the right side of the front cover rod end with a triangle mark on the cargo area trim .
NOTE
When the rear seatbacks are reclined , align the front cover rod to the rear triangle mark .
3 . Push the front cover rod on the right side against the cargo area trim to shorten the front cover rod .
4 . Once the right side is aligned , align the left side to a triangle mark on the cargo area trim to fix the front cover in place .
CAUTION
When reclining the rear seatback , move the front cover backward so
& Using the Cover WARNING s06ak01
Do not place anything on the extended cover . Putting excessive weight on the extended cover can break it and the object on the cover could tumble forward in the event of a sudden stop or collision . This could cause serious injury .
CAUTION
Be careful not to scratch the rear gate stays while extending and rewinding the cover . Scratches on the stays could cause leakage of gas from the stays , which may result in their inability to hold the rear gate open .
A ) |
Stopper |
1 ) |
Tilt up |
2 ) |
Pull out |
1 . Hold the cover by the handle in the center , tilt it up and pull it out to free the stoppers .
