. Do not use more than one floor mat . |
Retaining pins are located on the driver ’ s side floor .
The floor mat should be properly secured using the built-in grommets , by placing the grommets over the pins and pushing them downward .
|

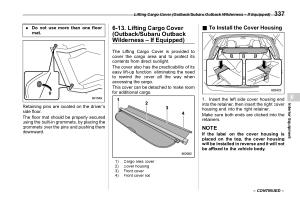

6-13 . Lifting Cargo Cover ( Outback / Subaru Outback Wilderness – If Equipped )
s06ak
The Lifting Cargo Cover is provided to cover the cargo area and to protect its contents from direct sunlight .
The cover also has the practicability of its easy lift-up function , eliminating the need to rewind the cover all the way when accessing the cargo .
This cover can be detached to make room for additional cargo .
|
& To Install the Cover Housing s06ak05 |
1 . Insert the left side cover housing end into the retainer , then insert the right cover housing end into the right retainer .
Make sure both ends are clicked into the retainers .
NOTE
If the label on the cover housing is placed on the top , the cover housing will be installed in reverse and it will not be affixed to the vehicle body .
|
6
Interior Equipment
|
||||||
|
|||||||||||
– CONTINUED – |
