Climate Control Panel 307

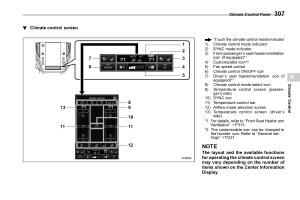

! Climate control screen s04ag1201
: Touch the climate control mode indicator 1 ) Climate control mode indicator 2 ) SYNC mode indicator
3 ) Front passenger ’ s seat heater / ventilation icon ( if equipped )* 1
4 ) Customizable icon * 2 5 ) Fan speed control 6 ) Climate control ON / OFF icon
7 ) Driver ’ s seat heater / ventilation icon ( if equipped )* 1
8 ) Climate control mode select icon 9 ) Temperature control screen ( passenger ’ s side )
10 ) SYNC icon 11 ) Temperature control bar 12 ) Airflow mode selection screen 13 ) Temperature control screen ( driver ’ s side )
* 1 : For details , refer to “ Front Seat Heater and Ventilation ” FP313 .
* 2 : The customizable icon can be changed to the favorite icon . Refer to “ General settings ” FP221 .
4
Climate Control
NOTE
The layout and the available functions for operating the climate control screen may vary depending on the number of items shown on the Center Information Display .
