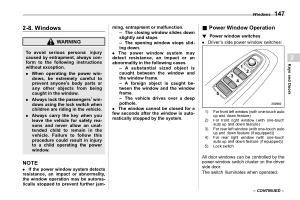

Windows 147 |
|||||||
|
2-8 . Windows
WARNING
s02ah
To avoid serious personal injury caused by entrapment , always conform to the following instructions without exception .
. When operating the power windows , be extremely careful to prevent anyone ’ s body parts or any other objects from being caught in the window .
. Always lock the passengers ’ windows using the lock switch when children are riding in the vehicle .
. Always carry the key when you leave the vehicle for safety reasons and never allow an unattended child to remain in the vehicle . Failure to follow this procedure could result in injury to a child operating the power window .
|
NOTE
. If the power window system detects resistance , an impact or abnormality , the window operation may be automatically stopped to prevent further jamming
|
, entrapment or malfunction . – The closing window slides down slightly and stops . – The opening window stops sliding down . . The power window system may detect resistance , an impact or an abnormality in the following cases . – A substantial sized object is caught between the window and the window frame . – A foreign object is caught between the window and the window frame . – The vehicle drives over a deep pothole . . The window cannot be closed for a few seconds after the window is automatically stopped by the system . |
& Power Window Operation s02ah07
! Power window switches s02ah0701
. Driver ’ s side power window switches :
|
1 ) For front left window ( with one-touch auto up and down feature )
2 ) For front right window ( with one-touch auto up and down feature )
3 ) For rear left window ( with one-touch auto up and down feature ( if equipped ))
4 ) For rear right window ( with one-touch auto up and down feature ( if equipped ))
5 ) Lock switch
All door windows can be controlled by the power window switch cluster on the driver side door .
The switch illuminates when operated .
– CONTINUED –
|
2
Keys and Doors
|
