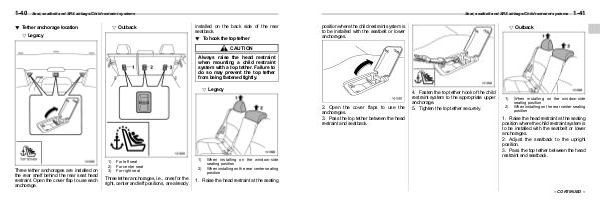

Seat, seatbelt and SRS airbags/Child restraint systems
position where the child restraint system is
to be installed with the seatbelt or lower
anchorages.
2. Open the cover flaps to use the
anchorages.
3. Pass the top tether between the head
restraint and seatback.
1-41
! Outback
S01AG090202
4. Fasten the top tether hook of the child
restraint system to the appropriate upper
anchorage.
5. Tighten the top tether securely.
1)
2)
When installing on the window-side
seating position
When installing on the rear center seating
position
1. Raise the head restraint at the seating
position where the child restraint system is
to be installed with the seatbelt or lower
anchorages.
2. Adjust the seatback to the upright
position.
3. Pass the top tether between the head
restraint and seatback.
– CONTINUED –
