12-12 Specifications/Fuses and circuits

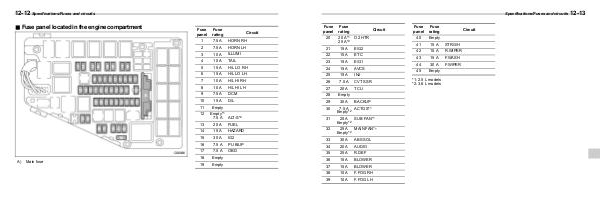

& Fuse panel located in the engine compartment
S12AB02
Fuse
panel Fuse
rating 1 7.5 A HORN RH
2 7.5 A HORN LH
3 10 A ILLUMI
4 10 A TAIL
5 15 A H/L LO RH
6 15 A H/L LO LH
7 10 A H/L HI RH
8 10 A H/L HI LH
9 7.5 A DCM
10 15 A D/L
11 Empty
12
A)
Main fuse
Circuit
Empty* 1
7.5 A ALT-S* 2
13 20 A FUEL
14 15 A HAZARD
15 30 A IG2
16 7.5 A PU B/UP
17 7.5 A OBD
18 Empty 19 Empty
