Starting and operating/BSD/RCTA

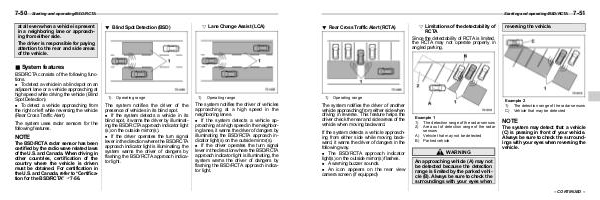

! Rear Cross Traffic Alert (RCTA)
S07BM0103
1)
! Limitations of the detectability of
RCTA
S07BM010301
Since the detectability of RCTA is limited,
the RCTA may not operate properly in
angled parking.
Operating range
The system notifies the driver of another
vehicle approaching from either side when
driving in reverse. This feature helps the
driver check the rear and side areas of the
vehicle when moving backward.
If the system detects a vehicle approach-
ing from either side while moving back-
ward, it warns the driver of dangers in the
following way.
. The BSD/RCTA approach indicator
light(s) on the outside mirror(s) flashes.
. A warning buzzer sounds.
. An icon appears on the rear view
camera screen (if equipped)
7-51
reversing the vehicle.
Example 2
1) The detection range of the radar sensors
C) Vehicle that may be detected
Example 1
1) The detection range of the radar sensors
2) Area out of detection range of the radar
sensors
A) Vehicle that may not be detected
B) Parked vehicle
NOTE
The system may detect that a vehicle
(C) is passing in front of your vehicle.
Always be sure to check the surround-
ings with your eyes when reversing the
vehicle.
WARNING
An approaching vehicle (A) may not
be detected because the detection
range is limited by the parked vehi-
cle (B). Always be sure to check the
surroundings with your eyes when
– CONTINUED –
