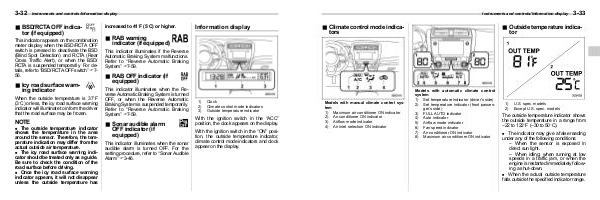

Instruments and controls/Information display
& Climate control mode indica-
tors
& Outside temperature indica-
tor
S03AZ11
Models with manual climate control sys-
tem
1) Maximum air conditioner ON indicator
2) Air conditioner ON indicator
3) Airflow mode indicator
4) Air inlet selection ON indicator
3-33
S03AZ01
Models with automatic climate control
system
1) Set temperature indicator (driver’s side)
2) Set temperature indicator (front passen-
ger’s side)
3) FULL AUTO indicator
4) Auto indicator
5) Airflow mode indicator
6) Fan speed indicator
7) Air conditioner ON indicator
8) Maximum air conditioner ON indicator
1)
2)
U.S. spec. models
Except U.S. spec. models
The outside temperature indicator shows
the outside temperature in a range from
−22 to 1228F (−30 to 508C).
. The indicator may give a false reading
under any of the following conditions:
– When the sensor is exposed in
direct sun light.
– When idling; when running at low
speeds in a traffic jam, or when the
engine is restarted immediately follow-
ing a shut-down.
. When the actual outside temperature
falls outside the specified indicator range.
