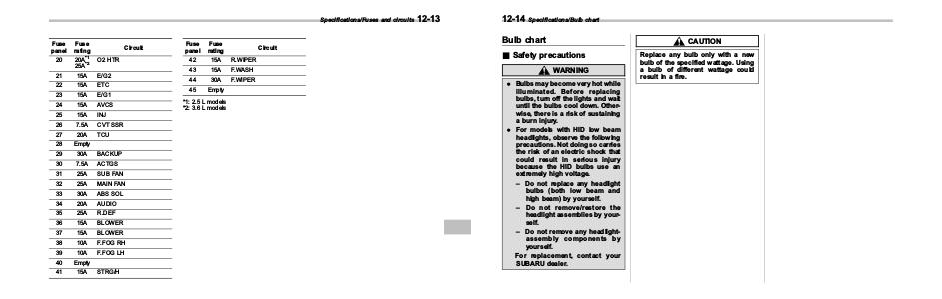

Specifications/Fuses and circuits

Fuse
panel

Fuse
rating

20

20A*1
*2

Circuit
O2 HTR

25A
21

15A

E/G2

22

15A

ETC

23

15A

E/G1

24

15A

AVCS

25

15A

INJ

26

7.5A

CVT SSR

27

20A

TCU

28

Empty

29

30A

BACKUP

30

7.5A

ACTGS

31

25A

SUB FAN

32

25A

MAIN FAN

33

30A

ABS SOL

34

20A

AUDIO

35

25A

R.DEF

36

15A

BLOWER

37

15A

BLOWER

38

10A

F.FOG RH

39

10A

F.FOG LH

40

Empty

41

15A

STRG/H

Fuse
panel

Fuse
rating

42

15A

R.WIPER

43

15A

F.WASH

44

30A

F.WIPER

45

Empty

*1: 2.5 L models
*2: 3.6 L models

Circuit

12-13
