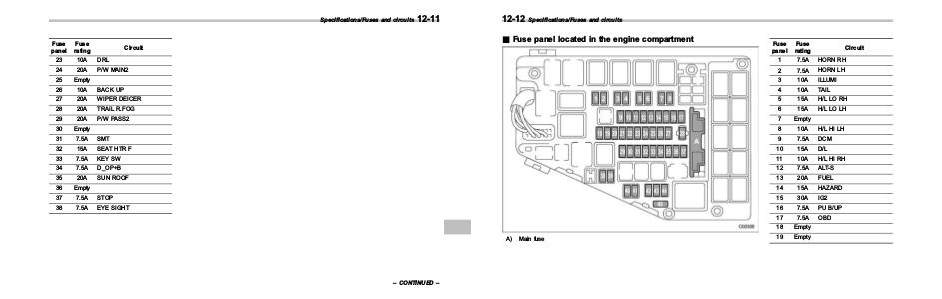

12-12

Specifications/Fuses and circuits

& Fuse panel located in the engine compartment

A)

Main fuse

Fuse
panel

Fuse
rating

1

7.5A

HORN RH

2

7.5A

HORN LH

3

10A

ILLUMI

4

10A

TAIL

5

15A

H/L LO RH

6

15A

H/L LO LH

7

Empty

Circuit

8

10A

H/L HI LH

9

7.5A

DCM

10

15A

D/L

11

10A

H/L HI RH

12

7.5A

ALT-S

13

20A

FUEL

14

15A

HAZARD

15

30A

IG2

16

7.5A

PU B/UP

17

7.5A

OBD

18

Empty

19

Empty
