BSD / RCTA 359 |
||||||
! BSD / RCTA approach indicator light s07bm0301 |

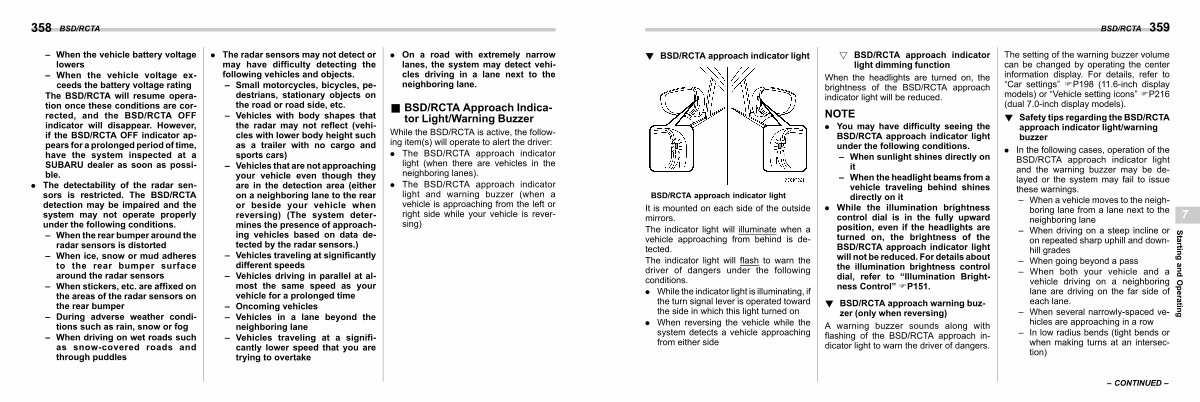

BSD / RCTA approach indicator light
It is mounted on each side of the outside mirrors.
The indicator light will illuminate when a vehicle approaching from behind is detected.
The indicator light will flash to warn the driver of dangers under the following conditions.
. While the indicator light is illuminating, if the turn signal lever is operated toward the side in which this light turned on
. When reversing the vehicle while the system detects a vehicle approaching from either side
|
! BSD / RCTA approach indicator light dimming function s07bm030101
When the headlights are turned on, the brightness of the BSD / RCTA approach indicator light will be reduced.
NOTE
. You may have difficulty seeing the BSD / RCTA approach indicator light under the following conditions. – When sunlight shines directly on it
– When the headlight beams from a vehicle traveling behind shines directly on it
. While the illumination brightness control dial is in the fully upward position, even if the headlights are turned on, the brightness of the BSD / RCTA approach indicator light will not be reduced. For details about the illumination brightness control dial, refer to“ Illumination Brightness Control” FP151.
! BSD / RCTA approach warning buzzer( only when reversing) s07bm0302
A warning buzzer sounds along with flashing of the BSD / RCTA approach indicator light to warn the driver of dangers.
|
The setting of the warning buzzer volume can be changed by operating the center information display. For details, refer to“ Car settings” FP198( 11.6-inch display models) or“ Vehicle setting icons” FP216( dual 7.0-inch display models).
! Safety tips regarding the BSD / RCTA approach indicator light / warning buzzer s07bm0303
. In the following cases, operation of the BSD / RCTA approach indicator light and the warning buzzer may be delayed or the system may fail to issue these warnings. – When a vehicle moves to the neighboring lane from a lane next to the neighboring lane
– When driving on a steep incline or on repeated sharp uphill and downhill grades – When going beyond a pass – When both your vehicle and a vehicle driving on a neighboring lane are driving on the far side of each lane.
– When several narrowly-spaced vehicles are approaching in a row
– In low radius bends( tight bends or when making turns at an intersection)
|
7
Starting and Operating
|
||
– CONTINUED – |
