486
Replacing Battery
same or equivalent type of the battery.
. Batteries shall not be exposed to excessive heat such as bright sunlight, fire or the like.
NOTE
. Replace only with the same or equivalent type of battery recommended by the manufacturer.
. Dispose of used batteries according to the local laws.
. Mount the battery in the correct orientation to prevent fluid leakage. Be careful not to bend the terminals. It may result in a malfunction.
. It is recommended that the battery should be replaced by a SUBARU dealer.. Use a new battery.. After replacing the battery, confirm that the access key fob / transmitter functions properly.

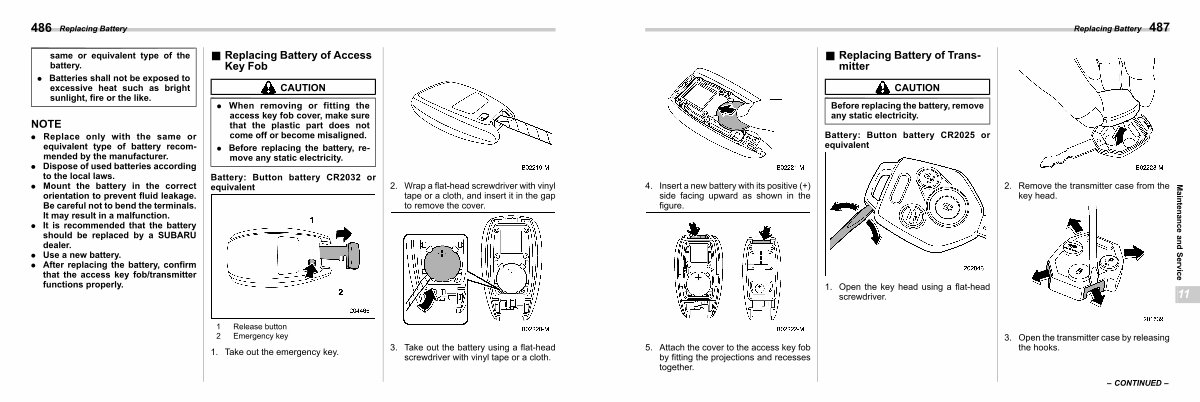

& Replacing Battery of Access Key Fob s11bk01
CAUTION
. When removing or fitting the access key fob cover, make sure that the plastic part does not come off or become misaligned.
. Before replacing the battery, remove any static electricity.
Battery: Button battery CR2032 or equivalent
2. Wrap a flat-head screwdriver with vinyl tape or a cloth, and insert it in the gap to remove the cover.
1 Release button 2 Emergency key
1. Take out the emergency key.
3. Take out the battery using a flat-head screwdriver with vinyl tape or a cloth.
