Replacing Battery 485 |
|||||||
|

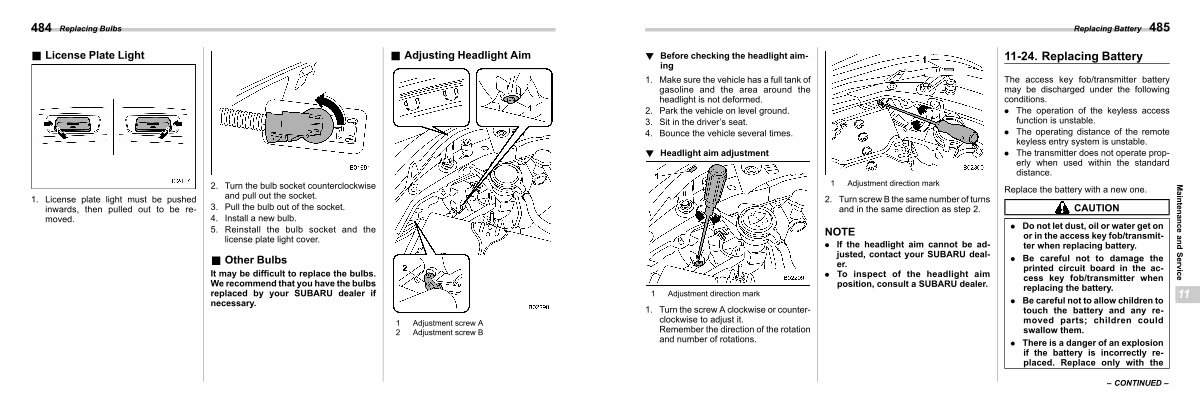

! Before checking the headlight aiming s11be5701
1. Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed.
2. Park the vehicle on level ground. 3. Sit in the driver’ s seat. 4. Bounce the vehicle several times.
! Headlight aim adjustment
1 Adjustment direction mark
s11be5702
1. Turn the screw A clockwise or counterclockwise to adjust it. Remember the direction of the rotation and number of rotations.
|
1 Adjustment direction mark
2. Turn screw B the same number of turns and in the same direction as step 2.
NOTE
. If the headlight aim cannot be adjusted, contact your SUBARU dealer.
. To inspect of the headlight aim position, consult a SUBARU dealer.
|
11-24. Replacing Battery
s11bk
The access key fob / transmitter battery may be discharged under the following conditions.
. The operation of the keyless access function is unstable.
. The operating distance of the remote keyless entry system is unstable.
. The transmitter does not operate properly when used within the standard distance.
|
Replace the battery with a new one.
CAUTION
. Do not let dust, oil or water get on or in the access key fob / transmitter when replacing battery.
. Be careful not to damage the printed circuit board in the access key fob / transmitter when replacing the battery.
. Be careful not to allow children to touch the battery and any removed parts; children could swallow them.
. There is a danger of an explosion if the battery is incorrectly replaced. Replace only with the
|
Maintenance and Service
11
|
|||
– CONTINUED – |
