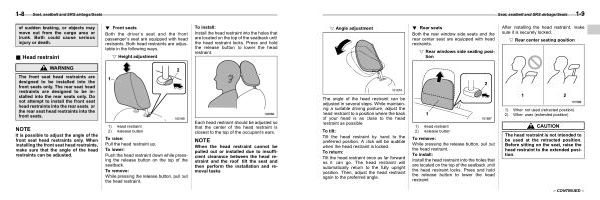

Seat , seatbelt and SRS airbags / Seats 1-9 |
! Angle adjustment |
S01AQ040102 |
|
|
! Rear seats
S01AQ0402
Both the rear window side seats and the rear center seat are equipped with head restraints .
|
After installing the head restraint , make sure it is securely locked .
! Rear center seating position
S01AQ040202
|
|
|
! Rear windows side seating position
S01AQ040201
|
|
The angle of the head restraint can be adjusted in several steps . While maintaining a suitable driving posture , adjust the head restraint to a position where the back of your head is as close to the head restraint as possible .
To tilt :
Tilt the head restraint by hand to the preferred position . A click will be audible when the head restraint is locked .
To return :
Tilt the head restraint once as far forward as it can go . The head restraint will automatically return to the fully upright position . Then , adjust the head restraint again to the preferred angle .
1 ) |
Head restraint |
2 ) |
Release button |
To remove :
While pressing the release button , pull out the head restraint .
To install :
Install the head restraint into the holes that are located on the top of the seatback until the head restraint locks . Press and hold the release button to lower the head restraint .
1 ) |
When not used ( retracted position ) |
2 ) |
When used ( extended position ) |
CAUTION
The head restraint is not intended to be used at the retracted position . Before sitting on the seat , raise the head restraint to the extended position .
– CONTINUED –
