3-48

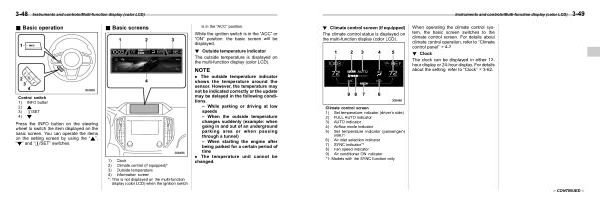

Instruments and controls / Multi-function display ( color LCD )
& Basic operation
Control switch 1 ) INFO button 2 ) 3 ) / SET 4 )
S03BP06
Press the INFO button on the steering wheel to switch the item displayed on the basic screen . You can operate the items on the setting screen by using the “ ”, “ ” and “ / SET ” switches .
& Basic screens
S03BP10
1 ) |
Clock |
2 ) |
Climate control ( if equipped )* |
3 ) |
Outside temperature |
4 ) |
Information screen |
*: This is not displayed on the multi-function |
display ( color LCD ) when the ignition switch |
is in the “ ACC ” position .
While the ignition switch is in the “ ACC ” or “ ON ” position , the basic screen will be displayed .
! Outside temperature indicator
S03BP1016
The outside temperature is displayed on the multi-function display ( color LCD ).
NOTE
. The outside temperature indicator shows the temperature around the sensor . However , the temperature may not be indicated correctly or the update may be delayed in the following conditions . – While parking or driving at low speeds – When the outside temperature changes suddenly ( example : when going in and out of an underground parking area or when passing through a tunnel ) – When starting the engine after being parked for a certain period of time . The temperature unit cannot be changed .
