Maintenance and service/Replacing bulbs

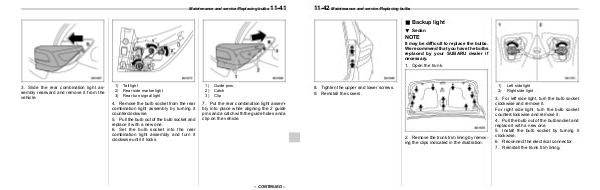

3. Slide the rear combination light as-
sembly rearward and remove it from the
vehicle.
1)
2)
3)
Tail light
Rear side marker light
Rear turn signal light
4. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb socket and
replace it with a new one.
6. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
1)
2)
3)
11-41
Guide pins
Catch
Clip
7. Put the rear combination light assem-
bly into place while aligning the 2 guide
pins and a catch with the guide holes and a
clip on the vehicle.
– CONTINUED –
