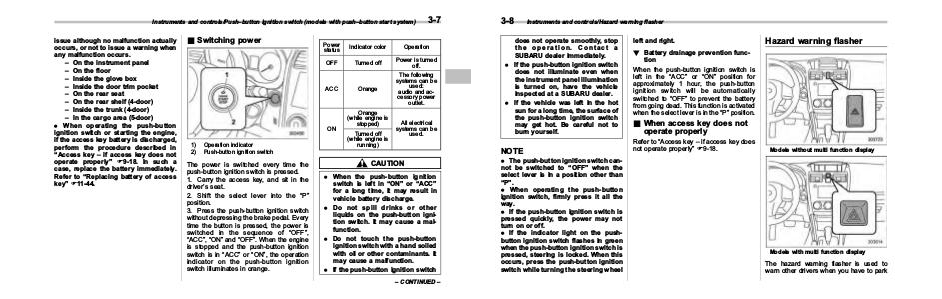

Instruments and controls/Push–button ignition switch (models with push–button start system)
issue although no malfunction actually
occurs, or not to issue a warning when
any malfunction occurs.
– On the instrument panel
– On the floor
– Inside the glove box
– Inside the door trim pocket
– On the rear seat
– On the rear shelf (4-door)
– Inside the trunk (4-door)
– In the cargo area (5-door)
. When operating the push-button
ignition switch or starting the engine,
if the access key battery is discharged,
perform the procedure described in
“Access key – if access key does not
operate properly” F9-18. In such a
case, replace the battery immediately.
Refer to “Replacing battery of access
key” F11-44.
& Switching power
Power
status
Indicator color
Operation
OFF
Turned off
Power is turned
off.
Orange
The following
systems can be
used:
audio and accessory power
outlet.
ACC
ON
1)
2)
Operation indicator
Push-button ignition switch
The power is switched every time the
push-button ignition switch is pressed.
1. Carry the access key, and sit in the
driver’s seat.
2. Shift the select lever into the “P”
position.
3. Press the push-button ignition switch
without depressing the brake pedal. Every
time the button is pressed, the power is
switched in the sequence of “OFF”,
“ACC”, “ON” and “OFF”. When the engine
is stopped and the push-button ignition
switch is in “ACC” or “ON”, the operation
indicator on the push-button ignition
switch illuminates in orange.
3-7
Orange
(while engine is
stopped)
Turned off
(while engine is
running)
All electrical
systems can be
used.
CAUTION
. When the push-button ignition
switch is left in “ON” or “ACC”
for a long time, it may result in
vehicle battery discharge.
. Do not spill drinks or other
liquids on the push-button ignition switch. It may cause a malfunction.
. Do not touch the push-button
ignition switch with a hand soiled
with oil or other contaminants. It
may cause a malfunction.
. If the push-button ignition switch
