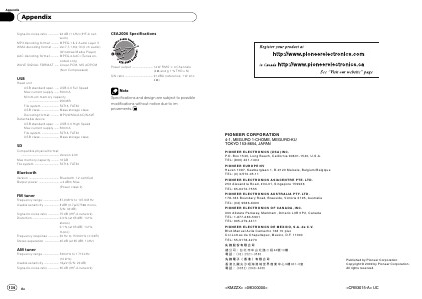

Appendix
Appendix
Signal-to-noise ratio ............... 94 dB (1 kHz) (IHF-A network)
MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3
WMA decoding format ......... Ver.7,7.1,8,9,10 (2 ch audio)
(Windows Media Player)
AAC decoding format ............ MPEG-4 AAC (iTunes encoded only)
WAVE SIGNAL FORMAT ...... Linear-PCM, MS ADPCM
(Non Compressed)
USB
Head unit
USB standard spec. ..... USB 2.0 Full Speed
Max current supply ....... 500 mA
Minimum memory capacity
........................................... 256 MB
File system ........................ FAT16, FAT32
USB class .......................... Mass storage class
Decoding format ............ MP3/WMA/AAC/WAVE
Detachable device
USB standard spec. ..... USB 2.0 High Speed
Max current supply ....... 500 mA
File system ........................ FAT16, FAT32
USB class .......................... Mass storage class
SD
Compatible physical format
..................................................... Version 2.00
Max memory capacity ........... 16 GB
File system .................................. FAT16, FAT32
Bluetooth
Version .......................................... Bluetooth 1.2 certified
Output power ............................ +4 dBm Max.
(Power class 2)
FM tuner
Frequency range ...................... 87.9 MHz to 107.9 MHz
Usable sensitivity ..................... 8 dBf (0.7 µV/75 W, mono,
S/N: 30 dB)
Signal-to-noise ratio ............... 75 dB (IHF-A network)
Distortion ..................................... 0.3 % (at 65 dBf, 1 kHz,
stereo)
0.1 % (at 65 dBf, 1 kHz,
mono)
Frequency response ............... 30 Hz to 15 000 Hz (±3 dB)
Stereo separation .................... 45 dB (at 65 dBf, 1 kHz)
AM tuner
Frequency range ...................... 530 kHz to 1 710 kHz
(10 kHz)
Usable sensitivity ..................... 18 µV (S/N: 20 dB)
Signal-to-noise ratio ............... 65 dB (IHF-A network)
136
En
CEA2006 Specifications
Power output ............................. 14 W RMS × 4 Channels
(4 W and ≦ 1 % THD+N)
S/N ratio ....................................... 91 dBA (reference: 1 W into
4 W)
Note
Specifications and design are subject to possible
modifications without notice due to improvements.
