Appendix
Appendix

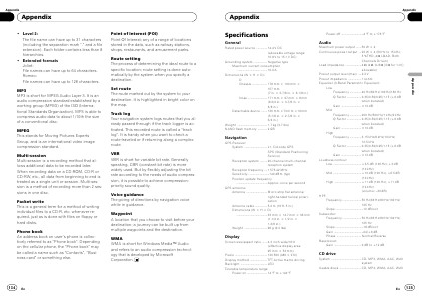

Specifications
Power off ............................ –4 °F to +176 °F
Audio
Rated power source ............... 14.4 V DC
(allowable voltage range:
10.8 V to 15.1 V DC)
Grounding system ................... Negative type
Maximum current consumption
........................................... 10.0 A
Dimensions (W × H × D):
D
Chassis ..................... 178 mm × 100 mm ×
157 mm
(7 in. × 3-7/8 in. × 6-1/8 in.)
Nose ........................... 171 mm × 97 mm × 8 mm
(6-3/4 in. × 3-7/8 in. ×
3/8 in.)
Detachable device ........ 130 mm ×73 mm ×19 mm
(5-1/8 in. × 2-7/8 in. ×
3/4 in.)
Weight .......................................... 1.7 kg (3.7 lbs)
NAND flash memory ............. 2 GB
Maximum power output ....... 50 W × 4
Continuous power output ... 22 W × 4 (50 Hz to 15 kHz,
5 %THD, 4 W LOAD, Both
Channels Driven)
Load impedance ...................... 4 W (4 W to 8 W [2 W for 1 ch]
allowable)
Preout output level (max) .... 2.2 V
Preout impedance .................. 1 kohm
Equalizer (3-Band Parametric Equalizer):
Low
Frequency ................ 40 Hz/80 Hz/100 Hz/160 Hz
Q Factor .................... 0.35/0.59/0.95/1.15 (+6 dB
when boosted)
Gain ............................ ±12 dB
Mid
Frequency ................ 200 Hz/500 Hz/1 kHz/2 kHz
Q Factor .................... 0.35/0.59/0.95/1.15 (+6 dB
when boosted)
Gain ............................ ±12 dB
High
Frequency ................ 3.15 kHz/8 kHz/10 kHz/
12.5 kHz
Q Factor .................... 0.35/0.59/0.95/1.15 (+6 dB
when boosted)
Gain ............................ ±12 dB
Loudness contour:
Low ....................................... +3.5 dB (100 Hz), +3 dB
(10 kHz)
Mid ....................................... +10 dB (100 Hz), +6.5 dB
(10 kHz)
High ..................................... +11 dB (100 Hz), +11 dB
(10 kHz)
(volume: –30 dB)
HPF:
Frequency .......................... 50 Hz/63 Hz/80 Hz/100 Hz/
125 Hz
Slope .................................... –12 dB/oct
Subwoofer:
Frequency .......................... 50 Hz/63 Hz/80 Hz/100 Hz/
125 Hz
Slope .................................... –18 dB/oct
Gain ...................................... –24/+6 dB
Phase .................................. Normal/Reverse
Bass boost:
Gain ...................................... 0 dB to +12 dB
Navigation
GPS Receiver:
System ................................ L1, C/Acode GPS
SPS (Standard Positioning
Service)
Reception system .......... 20-channel multi-channel
reception system
Reception frequency .... 1 575.42 MHz
Sensitivity .......................... –140 dBm (typ)
Position update frequency
........................................... Approx. once per second
GPS antenna:
Antenna ............................. Micro strip flat antenna/
right-handed helical polarization
Antenna cable ................. 5.0 m (16 ft. 5 in.)
Dimensions (W × H × D)
........................................... 33 mm × 14.7 mm × 36 mm
(1-1/4 in. × 1/2 in. ×
1-3/8 in.)
Weight ................................ 96 g (0.2 lbs)
Display
Screen size/aspect ratio ....... 4.3 inch wide/16:9
(effective display area:
95 mm × 53 mm)
Pixels ............................................. 130 560 (480 × 272)
Display method ........................ TFT Active matrix driving
Backlight ..................................... LED
Tolerable temperature range:
Power on ............................ 14 °F to +140 °F
Appendix
General
CD drive
System .......................................... CD, MP3, WMA, AAC, WAV
system
Usable discs .............................. CD, MP3, WMA, AAC, WAV
En
135
