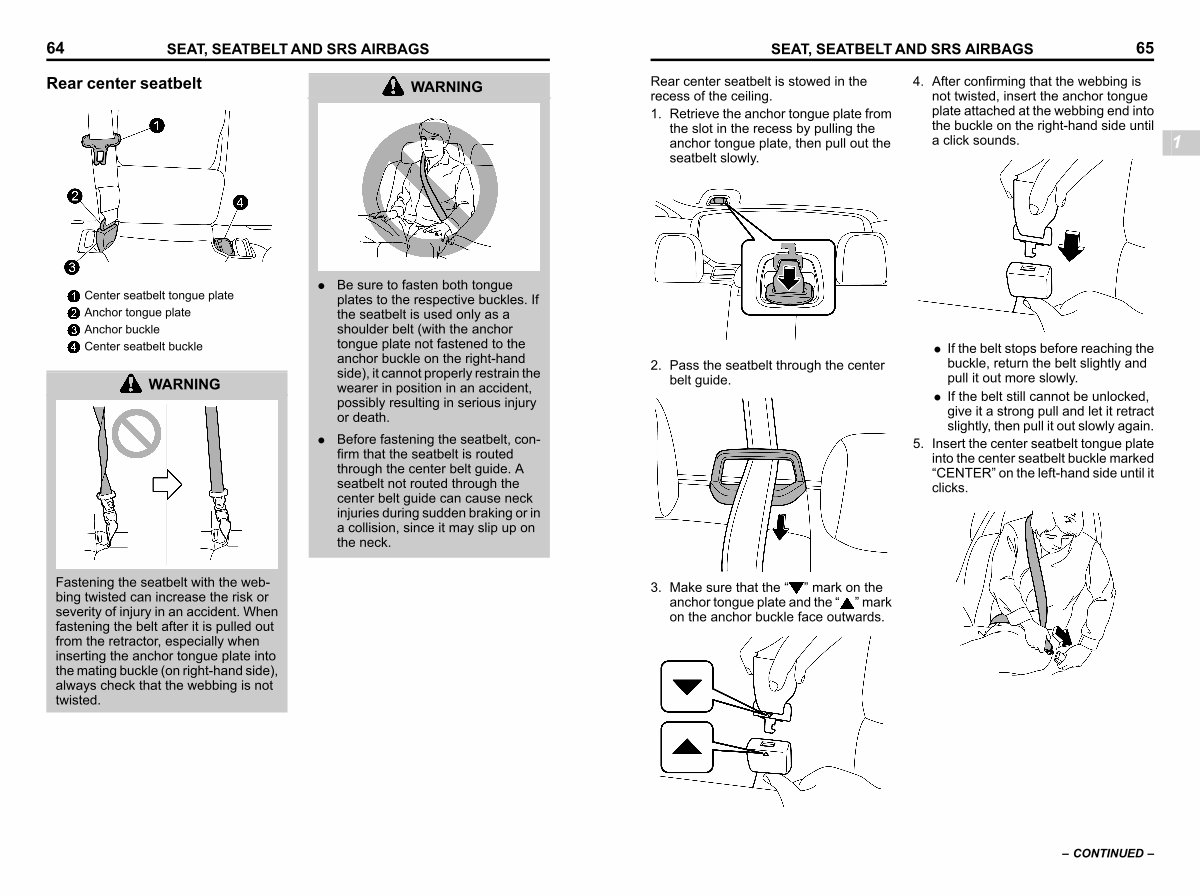

SEAT, SEATBELT AND SRS AIRBAGS 65
Rear center seatbelt is stowed in the recess of the ceiling.
1. Retrieve the anchor tongue plate from the slot in the recess by pulling the anchor tongue plate, then pull out the seatbelt slowly.
4. After confirming that the webbing is not twisted, insert the anchor tongue plate attached at the webbing end into the buckle on the right-hand side until a click sounds.
1
S _ 103071-W
2. Pass the seatbelt through the center belt guide.
S _ 103074-W
. If the belt stops before reaching the buckle, return the belt slightly and pull it out more slowly.
. If the belt still cannot be unlocked, give it a strong pull and let it retract slightly, then pull it out slowly again.
5. Insert the center seatbelt tongue plate into the center seatbelt buckle marked“ CENTER” on the left-hand side until it clicks.
S _ 103072-W
3. Make sure that the“” mark on the anchor tongue plate and the“” mark on the anchor buckle face outwards.
S _ 103075-W
S _ 103202-W
– CONTINUED –
