STARTING AND OPERATING 395

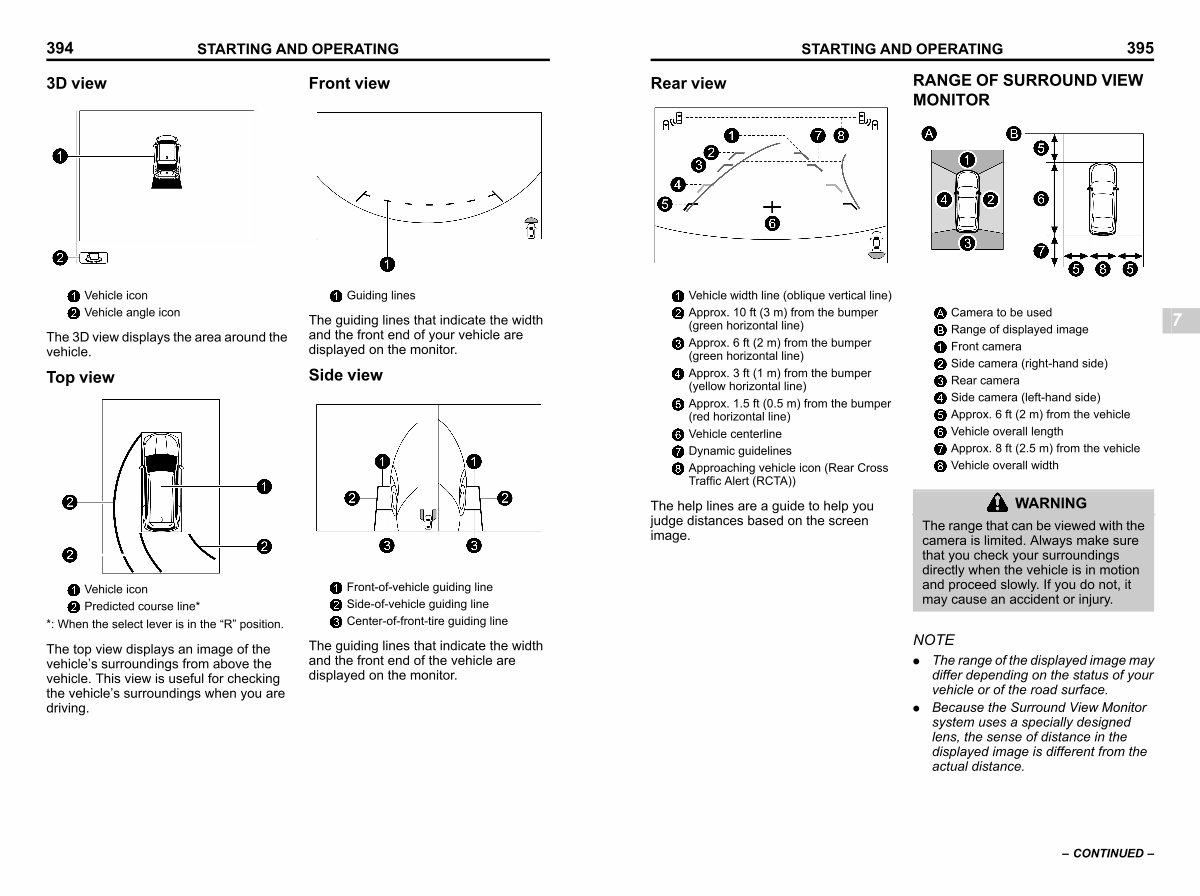

Rear view s07bu0305
RANGE OF SURROUND VIEW MONITOR s07bu04
S _ 703278-W
Vehicle width line( oblique vertical line)
Approx. 10 ft( 3 m) from the bumper( green horizontal line)
Approx. 6 ft( 2 m) from the bumper( green horizontal line)
Approx. 3 ft( 1 m) from the bumper( yellow horizontal line)
Approx. 1.5 ft( 0.5 m) from the bumper( red horizontal line)
Vehicle centerline Dynamic guidelines
Approaching vehicle icon( Rear Cross Traffic Alert( RCTA))
The help lines are a guide to help you judge distances based on the screen image.
S _ 703279-W
Camera to be used Range of displayed image Front camera Side camera( right-hand side) Rear camera Side camera( left-hand side) Approx. 6 ft( 2 m) from the vehicle Vehicle overall length Approx. 8 ft( 2.5 m) from the vehicle Vehicle overall width
WARNING
The range that can be viewed with the camera is limited. Always make sure that you check your surroundings directly when the vehicle is in motion and proceed slowly. If you do not, it may cause an accident or injury.
7
NOTE
. The range of the displayed image may differ depending on the status of your vehicle or of the road surface.
. Because the Surround View Monitor system uses a specially designed lens, the sense of distance in the displayed image is different from the actual distance.
– CONTINUED –
