394 STARTING AND OPERATING

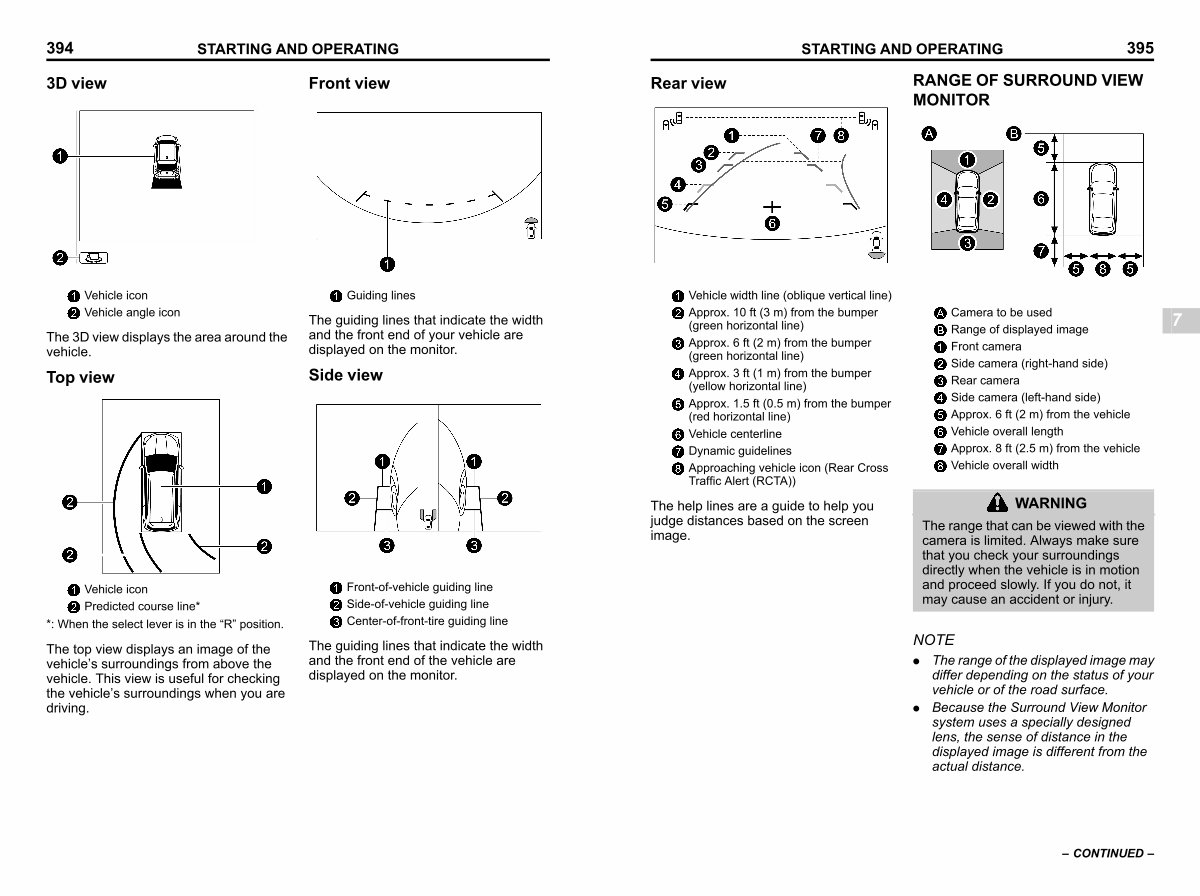

3D view |
s07bu0301 |
Front view |
s07bu0303 |
Vehicle icon Vehicle angle icon
S _ 703312-W
The 3D view displays the area around the vehicle.
Top view s07bu0302
Guiding lines
S _ 703276-W
The guiding lines that indicate the width and the front end of your vehicle are displayed on the monitor.
Side view s07bu0304
S _ 703275-W
Vehicle icon
Predicted course line * *: When the select lever is in the“ R” position.
The top view displays an image of the vehicle’ s surroundings from above the vehicle. This view is useful for checking the vehicle’ s surroundings when you are driving.
S _ 703277-W
Front-of-vehicle guiding line Side-of-vehicle guiding line Center-of-front-tire guiding line
The guiding lines that indicate the width and the front end of the vehicle are displayed on the monitor.
