392 STARTING AND OPERATING

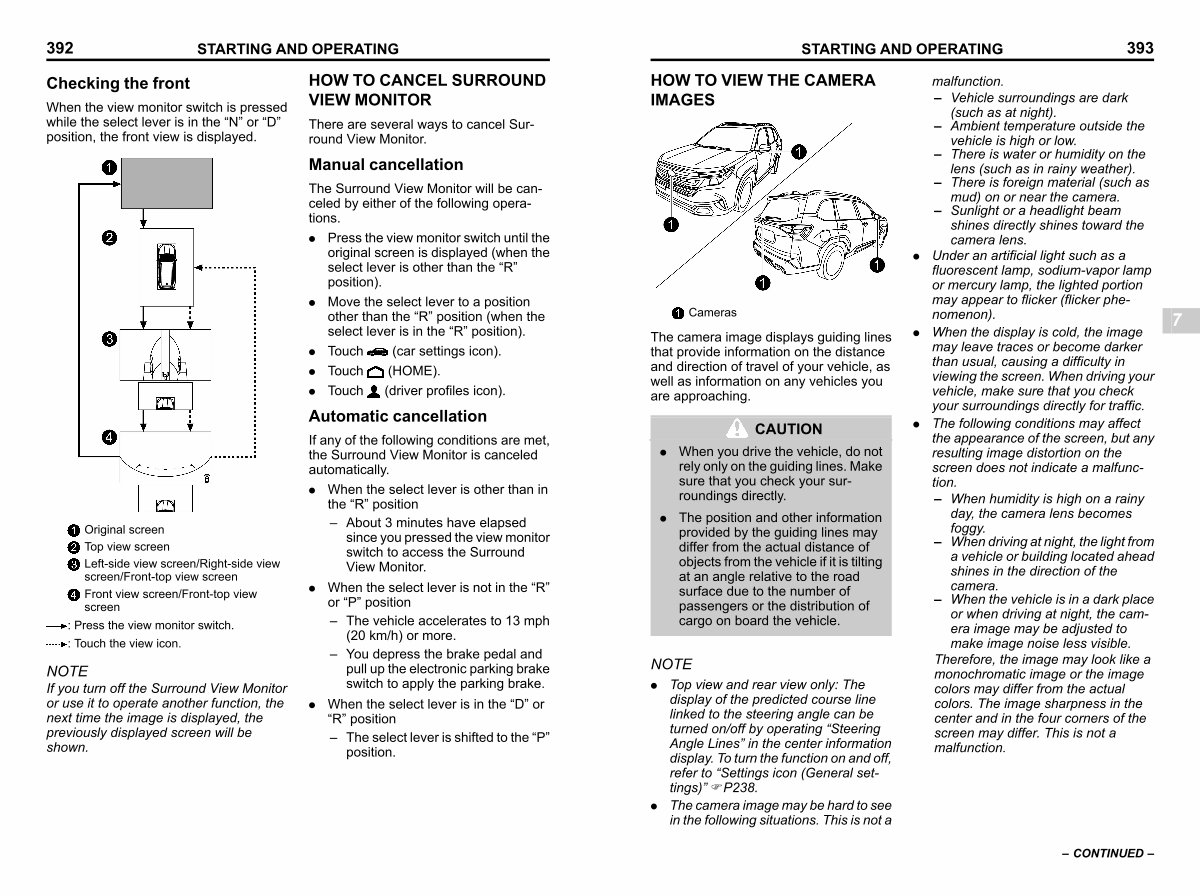

Checking the front s07bu0103
When the view monitor switch is pressed while the select lever is in the“ N” or“ D” position, the front view is displayed.
S _ 703274-W
Original screen Top view screen
Left-side view screen / Right-side view screen / Front-top view screen
Front view screen / Front-top view screen
: Press the view monitor switch.: Touch the view icon.
NOTE
If you turn off the Surround View Monitor or use it to operate another function, the next time the image is displayed, the previously displayed screen will be shown.
HOW TO CANCEL SURROUND VIEW MONITOR s07bu02
There are several ways to cancel Surround View Monitor.
Manual cancellation s07bu0201
The Surround View Monitor will be canceled by either of the following operations.
. Press the view monitor switch until the original screen is displayed( when the select lever is other than the“ R” position).
. Move the select lever to a position other than the“ R” position( when the select lever is in the“ R” position).
. Touch( car settings icon).. Touch( HOME).. Touch( driver profiles icon).
Automatic cancellation s07bu0202
If any of the following conditions are met, the Surround View Monitor is canceled automatically.
. When the select lever is other than in the“ R” position
– About 3 minutes have elapsed since you pressed the view monitor switch to access the Surround View Monitor.
. When the select lever is not in the“ R” or“ P” position
– The vehicle accelerates to 13 mph( 20 km / h) or more.
– You depress the brake pedal and pull up the electronic parking brake switch to apply the parking brake.
. When the select lever is in the“ D” or“ R” position
– The select lever is shifted to the“ P” position.
