STARTING AND OPERATING 391
displayed, it will be displayed at the previously displayed angle.

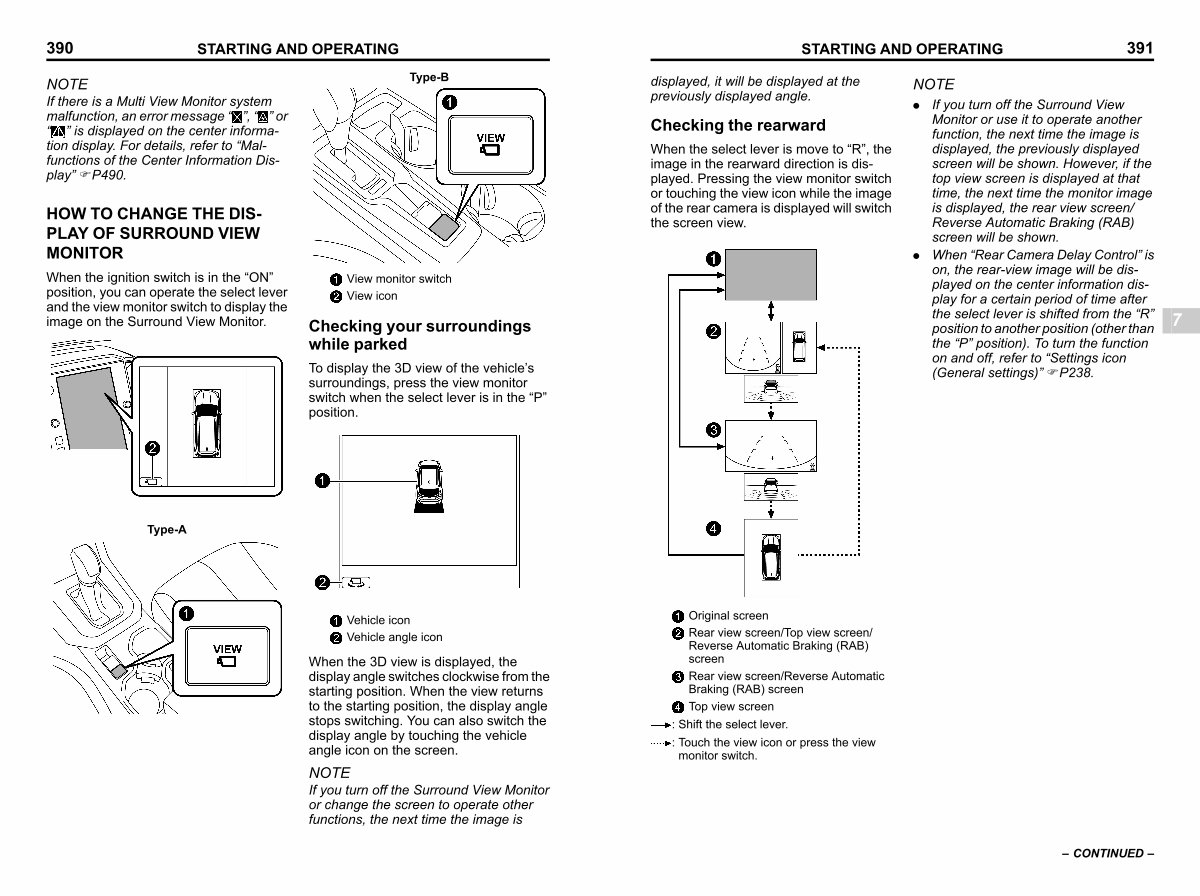

Checking the rearward s07bu0102
When the select lever is move to“ R”, the image in the rearward direction is displayed. Pressing the view monitor switch or touching the view icon while the image of the rear camera is displayed will switch the screen view.
NOTE
. If you turn off the Surround View Monitor or use it to operate another function, the next time the image is displayed, the previously displayed screen will be shown. However, if the top view screen is displayed at that time, the next time the monitor image is displayed, the rear view screen / Reverse Automatic Braking( RAB) screen will be shown.
. When“ Rear Camera Delay Control” is on, the rear-view image will be displayed on the center information display for a certain period of time after the select lever is shifted from the“ R” position to another position( other than the“ P” position). To turn the function on and off, refer to“ Settings icon( General settings)” FP238.
7
S _ 703273-W
Original screen
Rear view screen / Top view screen / Reverse Automatic Braking( RAB) screen
Rear view screen / Reverse Automatic Braking( RAB) screen
Top view screen: Shift the select lever.
: Touch the view icon or press the view monitor switch.
– CONTINUED –
