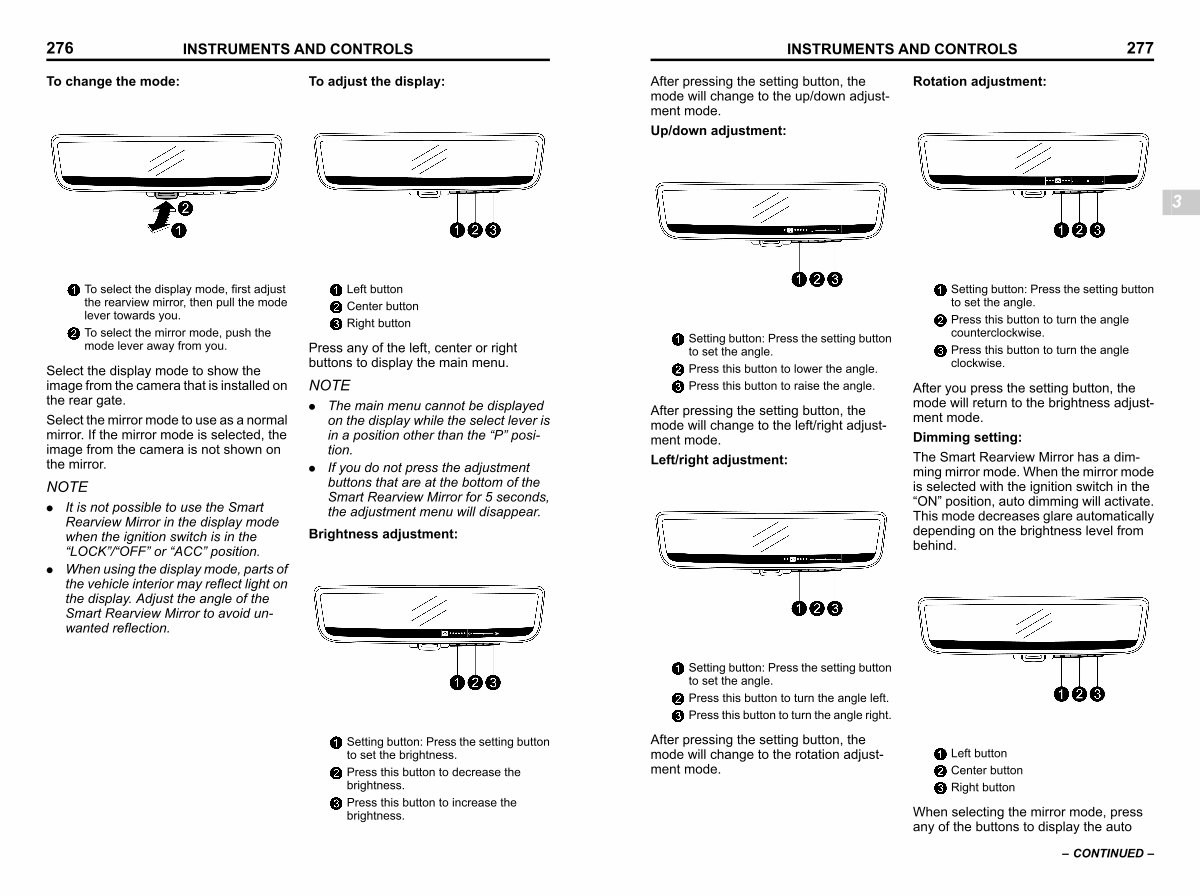

INSTRUMENTS AND CONTROLS 277
After pressing the setting button, the mode will change to the up / down adjustment mode.
Up / down adjustment:
Rotation adjustment:
3
S _ 307940-W
Setting button: Press the setting button to set the angle.
Press this button to lower the angle. Press this button to raise the angle.
After pressing the setting button, the mode will change to the left / right adjustment mode.
Left / right adjustment:
S _ 307942-W
Setting button: Press the setting button to set the angle.
Press this button to turn the angle counterclockwise.
Press this button to turn the angle clockwise.
After you press the setting button, the mode will return to the brightness adjustment mode.
Dimming setting:
The Smart Rearview Mirror has a dimming mirror mode. When the mirror mode is selected with the ignition switch in the“ ON” position, auto dimming will activate. This mode decreases glare automatically depending on the brightness level from behind.
S _ 307941-W
Setting button: Press the setting button to set the angle.
Press this button to turn the angle left. Press this button to turn the angle right.
After pressing the setting button, the mode will change to the rotation adjustment mode.
Left button Center button Right button
S _ 307938-W
When selecting the mirror mode, press any of the buttons to display the auto
– CONTINUED –
