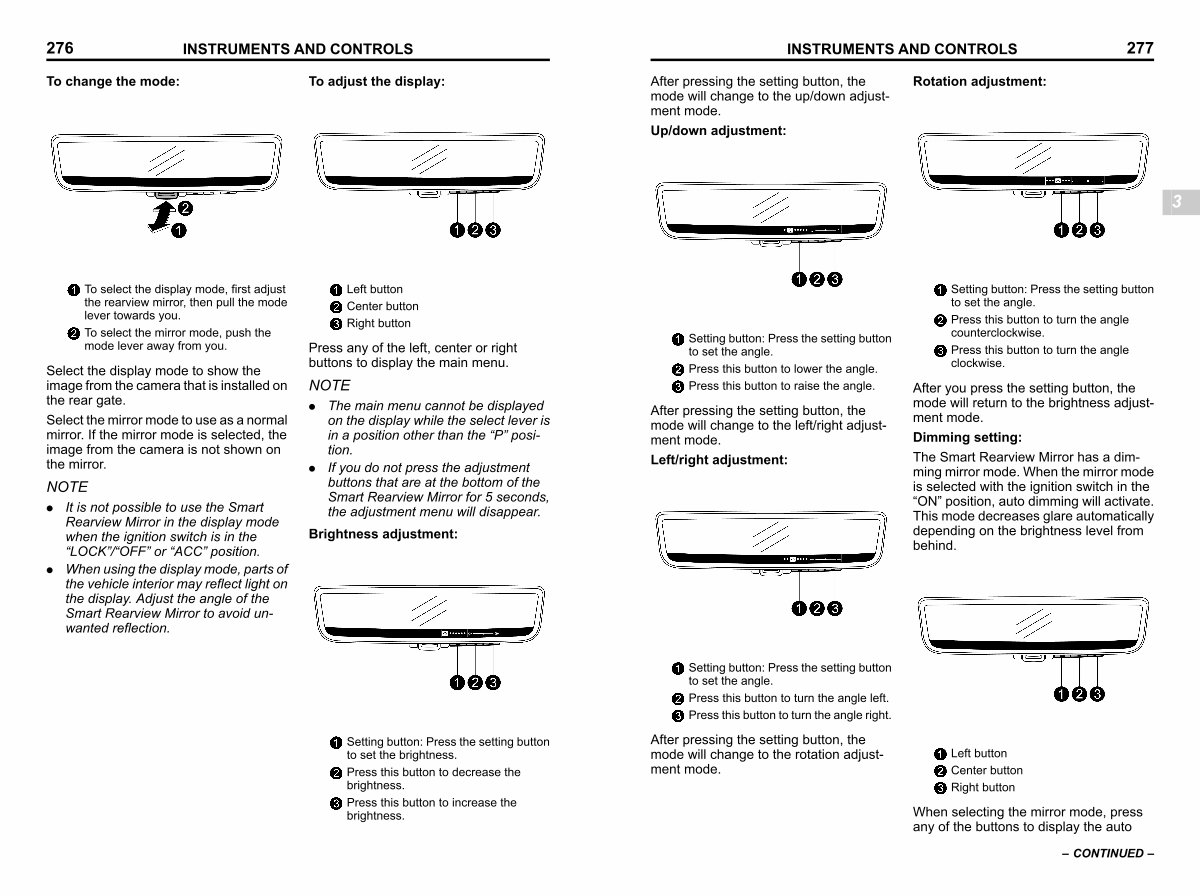

276 INSTRUMENTS AND CONTROLS
To change the mode:
To adjust the display:
S _ 307937-W
To select the display mode, first adjust the rearview mirror, then pull the mode lever towards you.
To select the mirror mode, push the mode lever away from you.
Select the display mode to show the image from the camera that is installed on the rear gate.
Select the mirror mode to use as a normal mirror. If the mirror mode is selected, the image from the camera is not shown on the mirror.
NOTE
. It is not possible to use the Smart Rearview Mirror in the display mode when the ignition switch is in the“ LOCK”/“ OFF” or“ ACC” position.
. When using the display mode, parts of the vehicle interior may reflect light on the display. Adjust the angle of the Smart Rearview Mirror to avoid unwanted reflection.
Left button Center button Right button
S _ 307938-W
Press any of the left, center or right buttons to display the main menu.
NOTE
. The main menu cannot be displayed on the display while the select lever is in a position other than the“ P” position.
. If you do not press the adjustment buttons that are at the bottom of the Smart Rearview Mirror for 5 seconds, the adjustment menu will disappear.
Brightness adjustment:
S _ 307939-W
Setting button: Press the setting button to set the brightness.
Press this button to decrease the brightness.
Press this button to increase the brightness.
