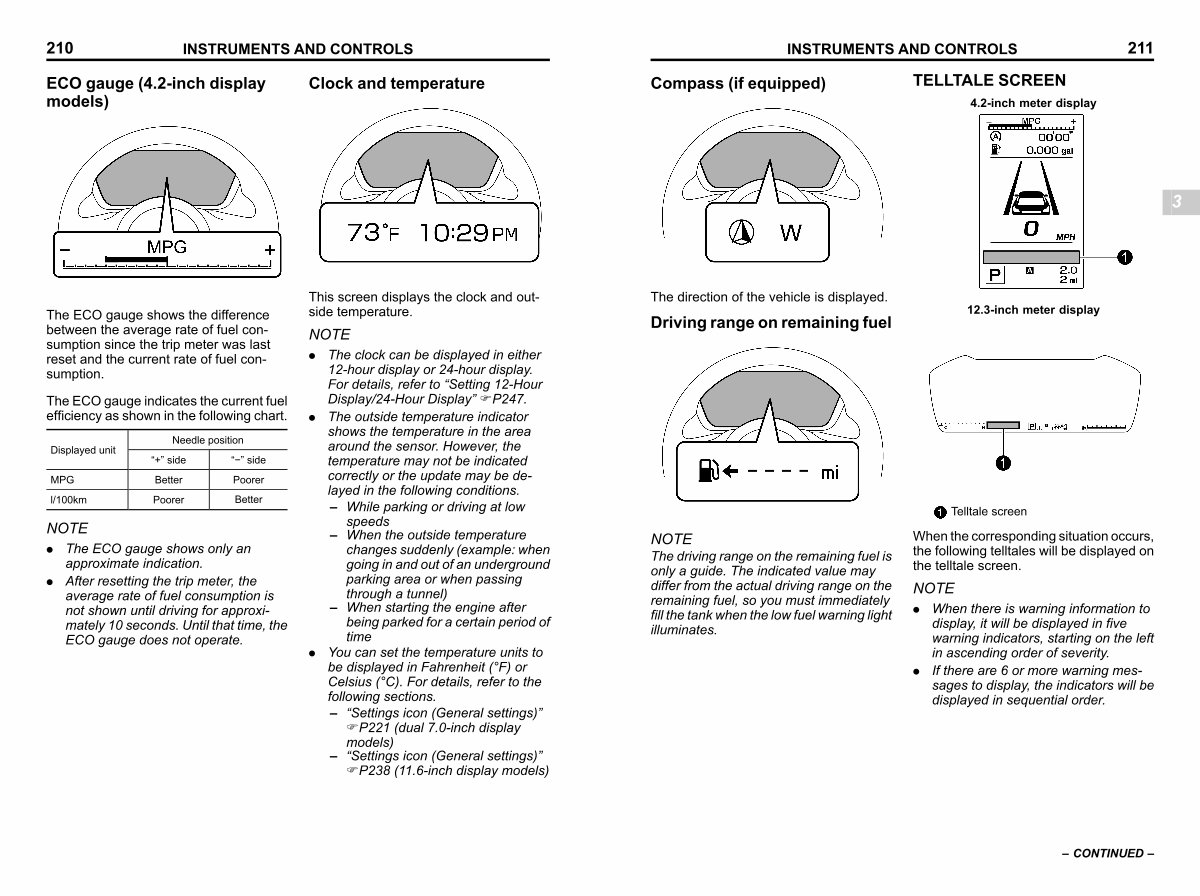

INSTRUMENTS AND CONTROLS 211
Compass( if equipped) |
s03bn1203 |
TELLTALE SCREEN
4.2-inch meter display
|
s03bn09 |
3
S _ 308257-W
The direction of the vehicle is displayed.
Driving range on remaining fuel s03bn1204
12.3-inch meter display
S _ 307906-W
S _ 308260-W
S _ 308258-W
NOTE
The driving range on the remaining fuel is only a guide. The indicated value may differ from the actual driving range on the remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.
Telltale screen
When the corresponding situation occurs, the following telltales will be displayed on the telltale screen.
NOTE
. When there is warning information to display, it will be displayed in five warning indicators, starting on the left in ascending order of severity.
. If there are 6 or more warning messages to display, the indicators will be displayed in sequential order.
– CONTINUED –
