210
INSTRUMENTS AND CONTROLS

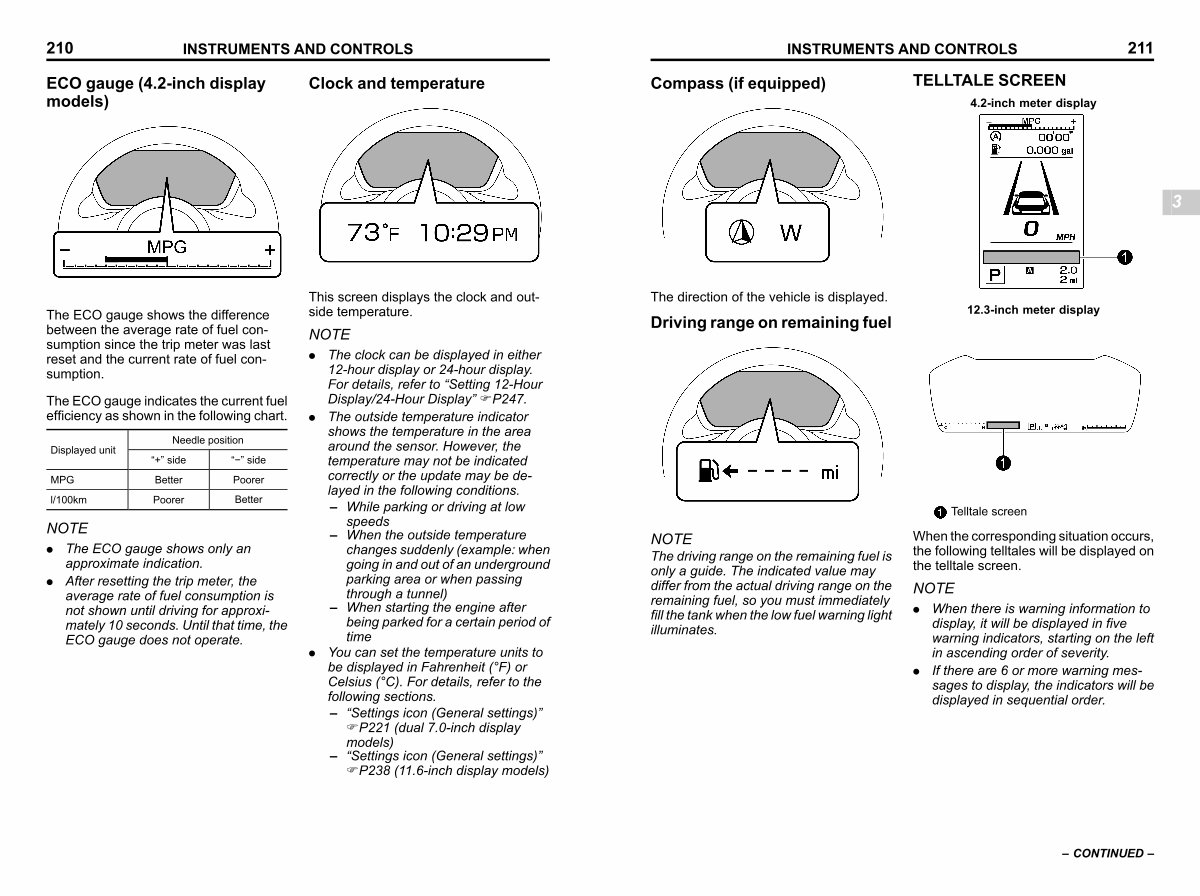

ECO gauge( 4.2-inch display models) s03bn1201
Clock and temperature s03bn1202
S _ 308256-W
S _ 308380-W
The ECO gauge shows the difference between the average rate of fuel consumption since the trip meter was last reset and the current rate of fuel consumption.
The ECO gauge indicates the current fuel efficiency as shown in the following chart.
Displayed unit
Needle position
“+” side“ −” side MPG Better Poorer l / 100km Poorer Better
NOTE
. The ECO gauge shows only an approximate indication.
. After resetting the trip meter, the average rate of fuel consumption is not shown until driving for approximately 10 seconds. Until that time, the ECO gauge does not operate.
This screen displays the clock and outside temperature.
NOTE
. The clock can be displayed in either 12-hour display or 24-hour display. For details, refer to“ Setting 12-Hour Display / 24-Hour Display” FP247.
. The outside temperature indicator shows the temperature in the area around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the engine after
being parked for a certain period of time
. You can set the temperature units to be displayed in Fahrenheit(° F) or Celsius(° C). For details, refer to the following sections.
–“ Settings icon( General settings)” FP221( dual 7.0-inch display
models) –“ Settings icon( General settings)”
FP238( 11.6-inch display models)
