STARTING AND OPERATING 343
Type-B

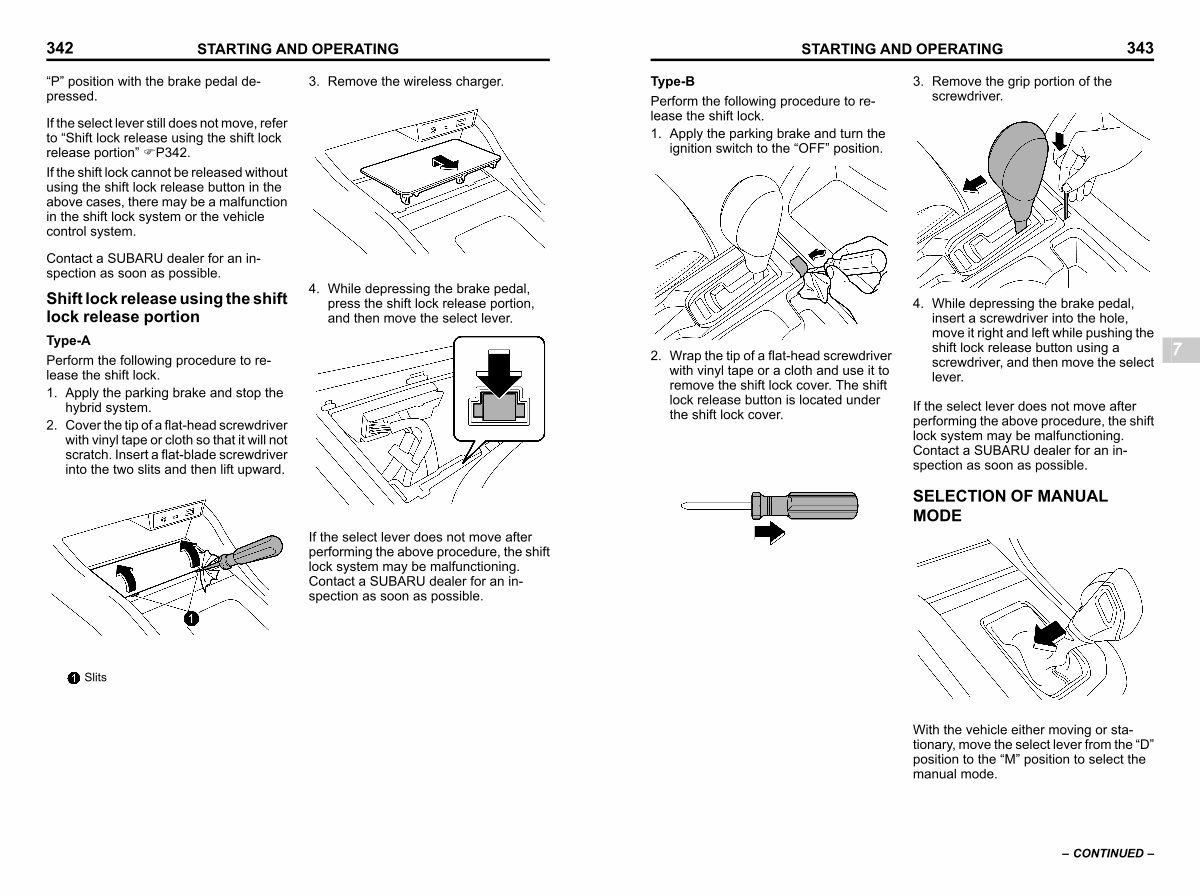

Perform the following procedure to release the shift lock.
1. Apply the parking brake and turn the ignition switch to the“ OFF” position.
3. Remove the grip portion of the screwdriver.
S _ 703578-W
2. Wrap the tip of a flat-head screwdriver with vinyl tape or a cloth and use it to remove the shift lock cover. The shift lock release button is located under the shift lock cover.
S _ 703579-W
4. While depressing the brake pedal, insert a screwdriver into the hole, move it right and left while pushing the shift lock release button using a screwdriver, and then move the select lever.
If the select lever does not move after performing the above procedure, the shift lock system may be malfunctioning. Contact a SUBARU dealer for an inspection as soon as possible.
7
SELECTION OF MANUAL MODE s07bg02
S _ 703503-MW
S _ 703134-W
With the vehicle either moving or stationary, move the select lever from the“ D” position to the“ M” position to select the manual mode.
– CONTINUED –
