About EyeSight
( 27)
( 28)
( 29)
( 30)
( 31)
( 32)

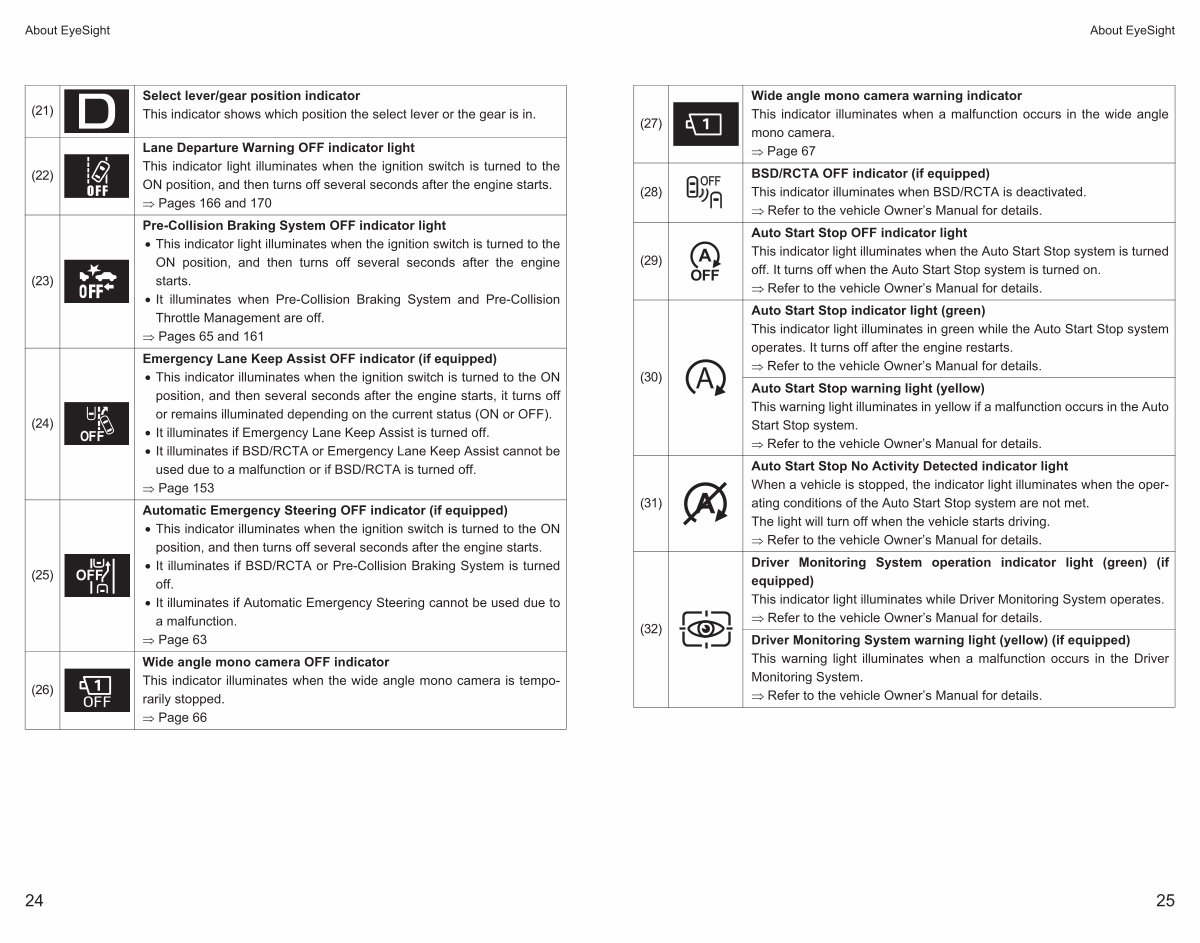

Wide angle mono camera warning indicator This indicator illuminates when a malfunction occurs in the wide angle mono camera.
� Page 67 BSD / RCTA OFF indicator( if equipped) This indicator illuminates when BSD / RCTA is deactivated. � Refer to the vehicle Owner’ s Manual for details. Auto Start Stop OFF indicator light This indicator light illuminates when the Auto Start Stop system is turned off. It turns off when the Auto Start Stop system is turned on. � Refer to the vehicle Owner’ s Manual for details. Auto Start Stop indicator light( green) This indicator light illuminates in green while the Auto Start Stop system operates. It turns off after the engine restarts.
� Refer to the vehicle Owner’ s Manual for details. Auto Start Stop warning light( yellow) This warning light illuminates in yellow if a malfunction occurs in the Auto Start Stop system.
� Refer to the vehicle Owner’ s Manual for details. Auto Start Stop No Activity Detected indicator light When a vehicle is stopped, the indicator light illuminates when the operating conditions of the Auto Start Stop system are not met. The light will turn off when the vehicle starts driving.
� Refer to the vehicle Owner’ s Manual for details. Driver Monitoring System operation indicator light( green)( if equipped) This indicator light illuminates while Driver Monitoring System operates. � Refer to the vehicle Owner’ s Manual for details. Driver Monitoring System warning light( yellow)( if equipped) This warning light illuminates when a malfunction occurs in the Driver Monitoring System. � Refer to the vehicle Owner’ s Manual for details.
25
