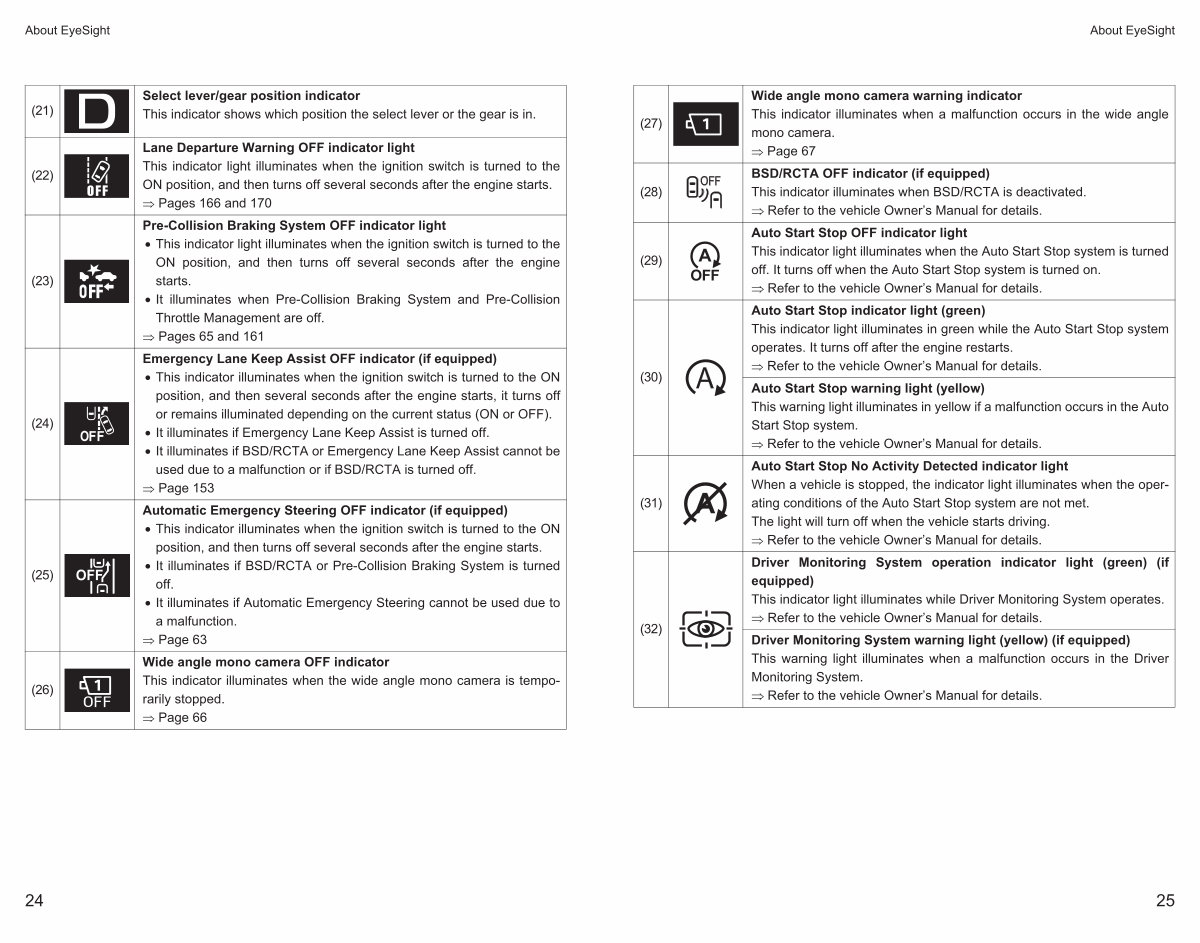

About EyeSight
( 21)
( 22)
( 23)
( 24)
( 25)
( 26)
Select lever / gear position indicator This indicator shows which position the select lever or the gear is in.
Lane Departure Warning OFF indicator light This indicator light illuminates when the ignition switch is turned to the ON position, and then turns off several seconds after the engine starts.
� Pages 166 and 170
Pre-Collision Braking System OFF indicator light
• This indicator light illuminates when the ignition switch is turned to the ON position, and then turns off several seconds after the engine starts.
• It illuminates when Pre-Collision Braking System and Pre-Collision Throttle Management are off.
� Pages 65 and 161
Emergency Lane Keep Assist OFF indicator( if equipped)
• This indicator illuminates when the ignition switch is turned to the ON position, and then several seconds after the engine starts, it turns off or remains illuminated depending on the current status( ON or OFF).
• It illuminates if Emergency Lane Keep Assist is turned off.
• It illuminates if BSD / RCTA or Emergency Lane Keep Assist cannot be used due to a malfunction or if BSD / RCTA is turned off.
� Page 153
Automatic Emergency Steering OFF indicator( if equipped)
• This indicator illuminates when the ignition switch is turned to the ON position, and then turns off several seconds after the engine starts.
• It illuminates if BSD / RCTA or Pre-Collision Braking System is turned off.
• It illuminates if Automatic Emergency Steering cannot be used due to a malfunction.
� Page 63 Wide angle mono camera OFF indicator This indicator illuminates when the wide angle mono camera is temporarily stopped.
� Page 66
24
