Lane Departure Prevention Function

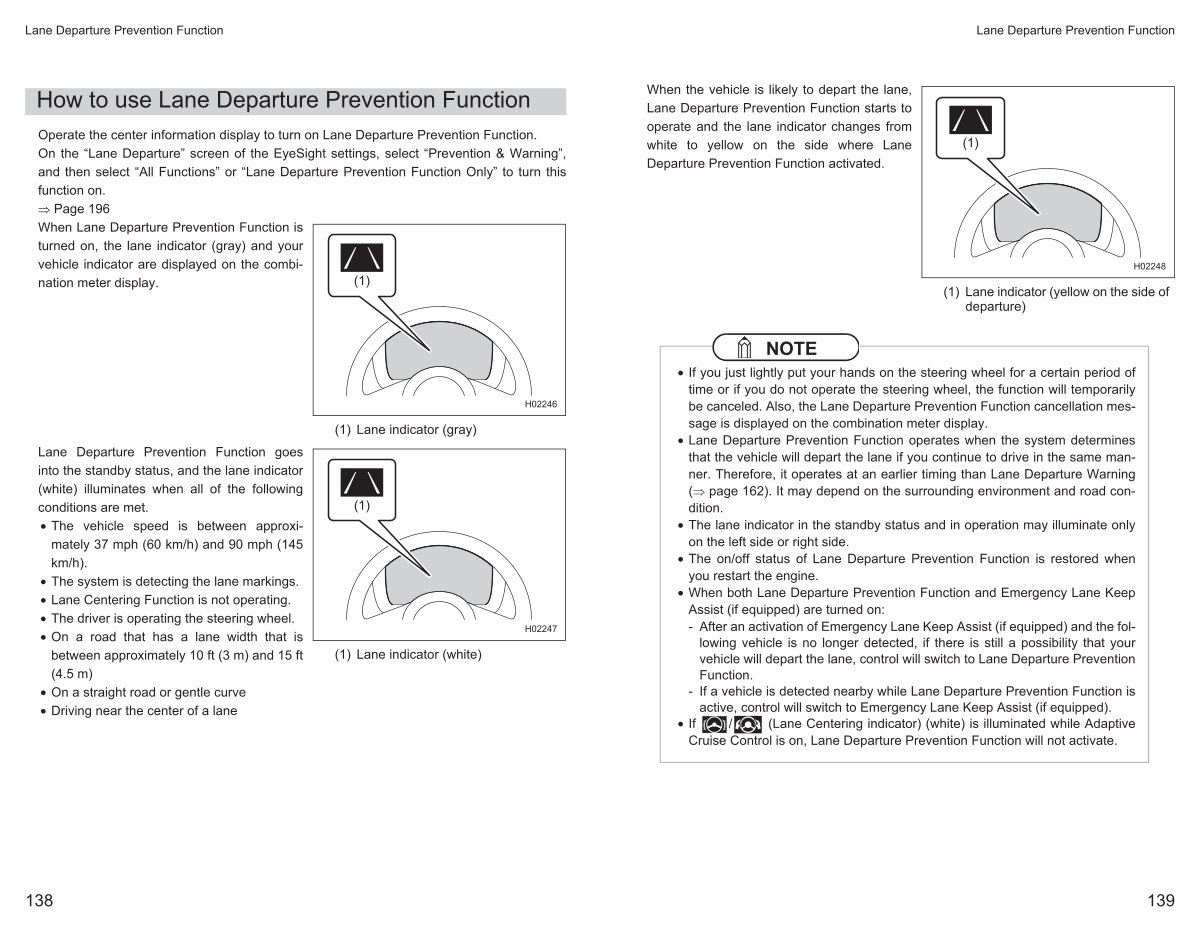

How to use Lane Departure Prevention Function
Operate the center information display to turn on Lane Departure Prevention Function. On the“ Lane Departure” screen of the EyeSight settings, select“ Prevention & Warning”, and then select“ All Functions” or“ Lane Departure Prevention Function Only” to turn this function on.
� Page 196 When Lane Departure Prevention Function is turned on, the lane indicator( gray) and your vehicle indicator are displayed on the combination meter display.
( 1)
( 1) Lane indicator( gray)
H02246
Lane Departure Prevention Function goes into the standby status, and the lane indicator( white) illuminates when all of the following conditions are met.
• The vehicle speed is between approximately 37 mph( 60 km / h) and 90 mph( 145 km / h).
• The system is detecting the lane markings.
• Lane Centering Function is not operating.
• The driver is operating the steering wheel.
• On a road that has a lane width that is between approximately 10 ft( 3 m) and 15 ft( 4.5 m)
• On a straight road or gentle curve
• Driving near the center of a lane
( 1)
( 1) Lane indicator( white)
H02247
138
