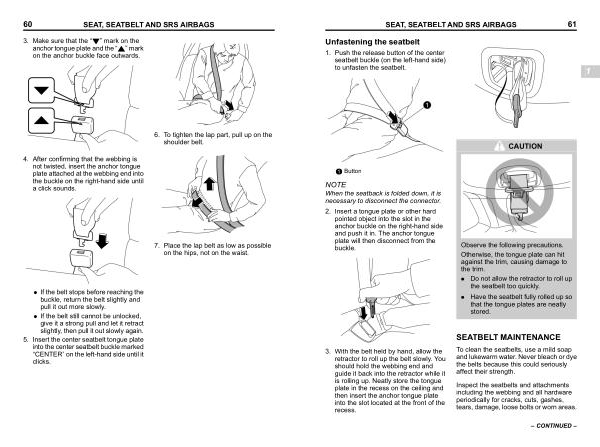

SEAT, SEATBELT AND SRS AIRBAGS 61
Unfastening the seatbelt s01ae0614
1. Push the release button of the center seatbelt buckle( on the left-hand side) to unfasten the seatbelt.
1
S _ 103079-W
CAUTION
Button
S _ 103221-W
NOTE
When the seatback is folded down, it is necessary to disconnect the connector.
2. Insert a tongue plate or other hard pointed object into the slot in the anchor buckle on the right-hand side and push it in. The anchor tongue plate will then disconnect from the buckle.
S _ 103080-W
Observe the following precautions.
Otherwise, the tongue plate can hit against the trim, causing damage to the trim.
. Do not allow the retractor to roll up the seatbelt too quickly.
. Have the seatbelt fully rolled up so that the tongue plates are neatly stored.
S _ 103200-W
3. With the belt held by hand, allow the retractor to roll up the belt slowly. You should hold the webbing end and guide it back into the retractor while it is rolling up. Neatly store the tongue plate in the recess on the ceiling and then insert the anchor tongue plate into the slot located at the front of the recess.
SEATBELT MAINTENANCE s01ae07
To clean the seatbelts, use a mild soap and lukewarm water. Never bleach or dye the belts because this could seriously affect their strength.
Inspect the seatbelts and attachments including the webbing and all hardware periodically for cracks, cuts, gashes, tears, damage, loose bolts or worn areas.
– CONTINUED –
