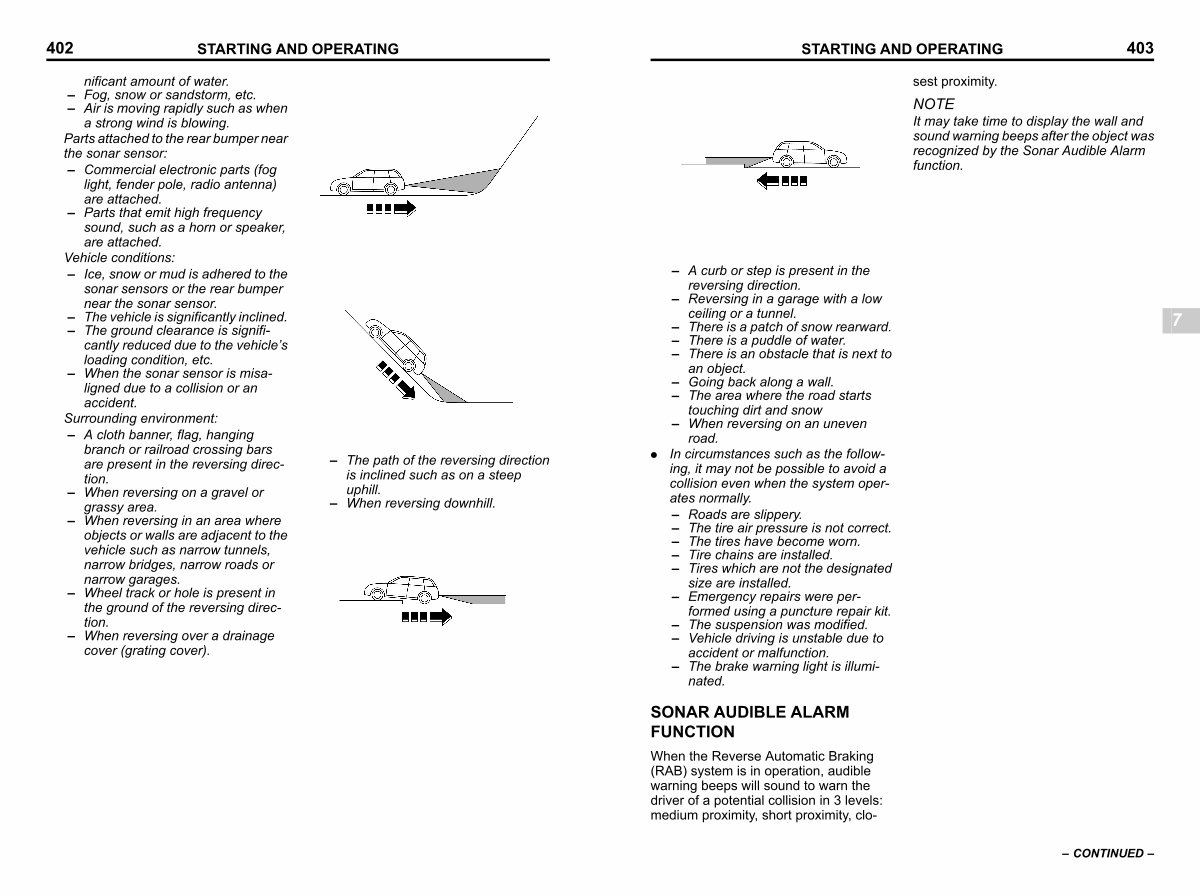

STARTING AND OPERATING 403
SONAR AUDIBLE ALARM FUNCTION s07bn03
When the Reverse Automatic Braking( RAB) system is in operation, audible warning beeps will sound to warn the driver of a potential collision in 3 levels: medium proximity, short proximity, closest proximity.
NOTE
It may take time to display the wall and sound warning beeps after the object was recognized by the Sonar Audible Alarm function.
S _ 703189-MW
– A curb or step is present in the
reversing direction. – Reversing in a garage with a low
ceiling or a tunnel. – There is a patch of snow rearward. – There is a puddle of water. – There is an obstacle that is next to
an object. – Going back along a wall. – The area where the road starts
touching dirt and snow – When reversing on an uneven
road.
. In circumstances such as the following, it may not be possible to avoid a collision even when the system operates normally.
– Roads are slippery. – The tire air pressure is not correct. – The tires have become worn. – Tire chains are installed. – Tires which are not the designated
size are installed. – Emergency repairs were performed using a puncture repair kit. – The suspension was modified. – Vehicle driving is unstable due to
accident or malfunction. – The brake warning light is illuminated.
7
– CONTINUED –
