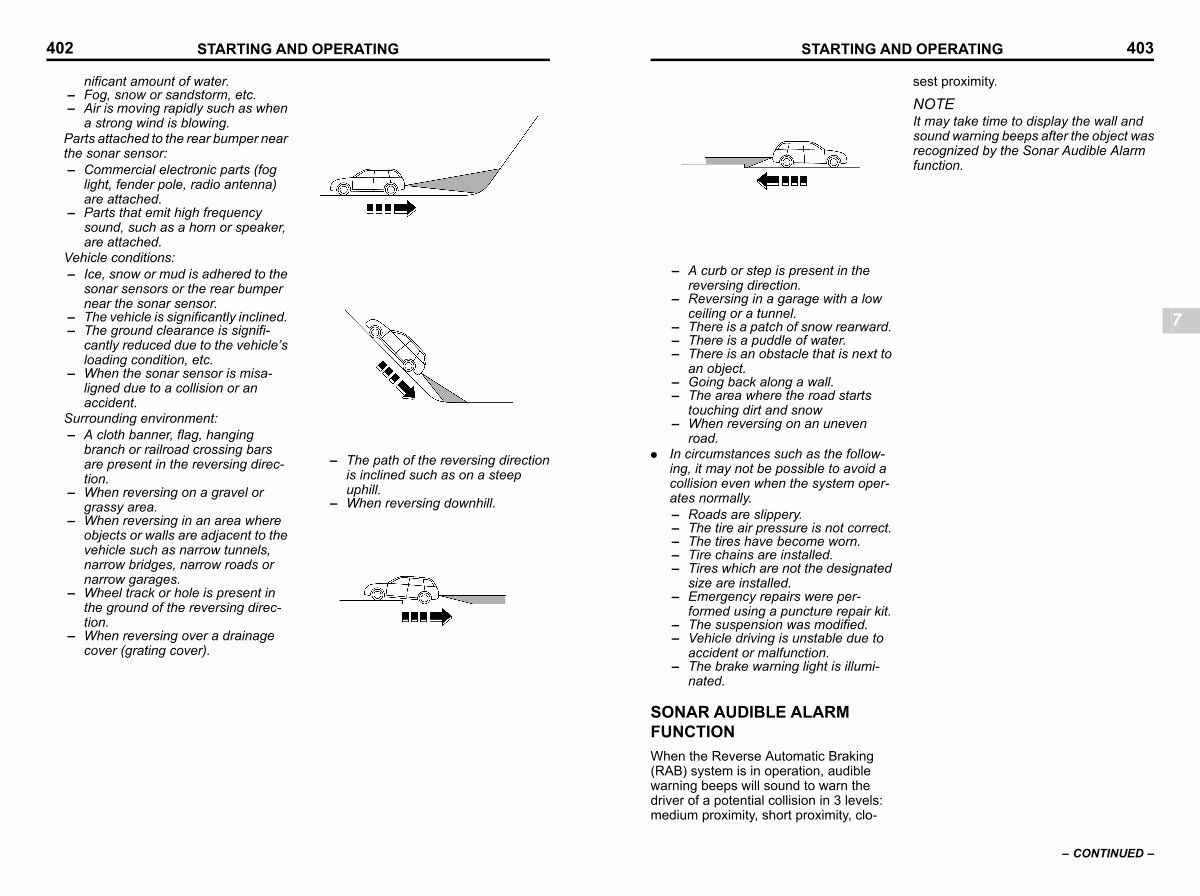

402
STARTING AND OPERATING
nificant amount of water. – Fog, snow or sandstorm, etc. – Air is moving rapidly such as when
a strong wind is blowing. Parts attached to the rear bumper near the sonar sensor:
– Commercial electronic parts( fog light, fender pole, radio antenna)
are attached. – Parts that emit high frequency
sound, such as a horn or speaker, are attached. Vehicle conditions:
– Ice, snow or mud is adhered to the sonar sensors or the rear bumper
near the sonar sensor. – The vehicle is significantly inclined. – The ground clearance is significantly reduced due to the vehicle’ s
loading condition, etc. – When the sonar sensor is misaligned due to a collision or an accident. Surrounding environment:
– A cloth banner, flag, hanging branch or railroad crossing bars are present in the reversing direction. – When reversing on a gravel or
grassy area. – When reversing in an area where
objects or walls are adjacent to the vehicle such as narrow tunnels, narrow bridges, narrow roads or
narrow garages. – Wheel track or hole is present in
the ground of the reversing direction. – When reversing over a drainage
cover( grating cover).
S _ 703186-MW
S _ 703187-MW
– The path of the reversing direction is inclined such as on a steep
uphill. – When reversing downhill.
S _ 703188-MW
