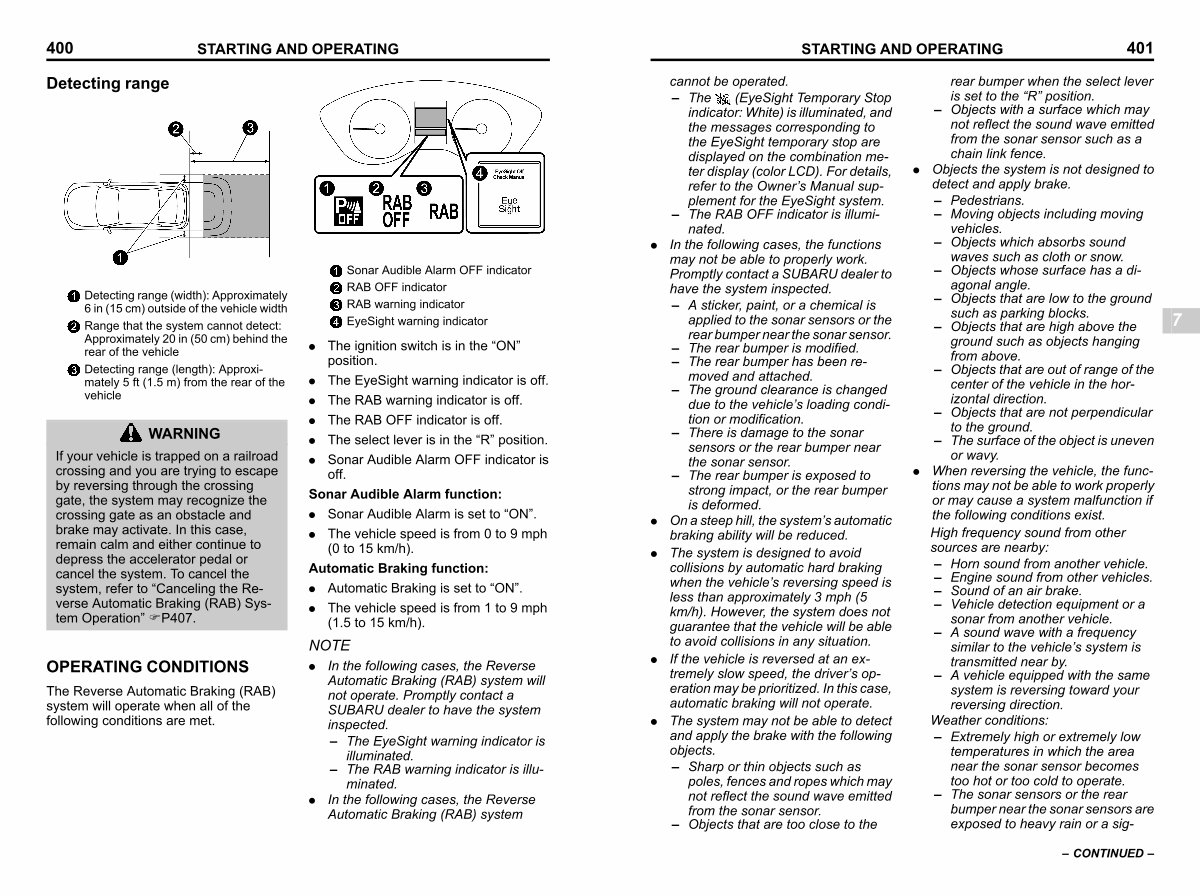

400 Detecting range
STARTING AND OPERATING
s07bn0101
S _ 703294-W
Detecting range( width): Approximately 6 in( 15 cm) outside of the vehicle width
Range that the system cannot detect: Approximately 20 in( 50 cm) behind the rear of the vehicle
Detecting range( length): Approximately 5 ft( 1.5 m) from the rear of the vehicle
WARNING
If your vehicle is trapped on a railroad crossing and you are trying to escape by reversing through the crossing gate, the system may recognize the crossing gate as an obstacle and brake may activate. In this case, remain calm and either continue to depress the accelerator pedal or cancel the system. To cancel the system, refer to“ Canceling the Reverse Automatic Braking( RAB) System Operation” FP407.
OPERATING CONDITIONS s07bn02
The Reverse Automatic Braking( RAB) system will operate when all of the following conditions are met.
S _ 703295-W
Sonar Audible Alarm OFF indicator RAB OFF indicator RAB warning indicator EyeSight warning indicator
. The ignition switch is in the“ ON” position.
. The EyeSight warning indicator is off.. The RAB warning indicator is off.. The RAB OFF indicator is off.. The select lever is in the“ R” position.
. Sonar Audible Alarm OFF indicator is off.
Sonar Audible Alarm function:. Sonar Audible Alarm is set to“ ON”.
. The vehicle speed is from 0 to 9 mph( 0 to 15 km / h).
Automatic Braking function:. Automatic Braking is set to“ ON”.
. The vehicle speed is from 1 to 9 mph( 1.5 to 15 km / h).
NOTE
. In the following cases, the Reverse Automatic Braking( RAB) system will not operate. Promptly contact a SUBARU dealer to have the system inspected.
– The EyeSight warning indicator is
illuminated. – The RAB warning indicator is illuminated.. In the following cases, the Reverse Automatic Braking( RAB) system
