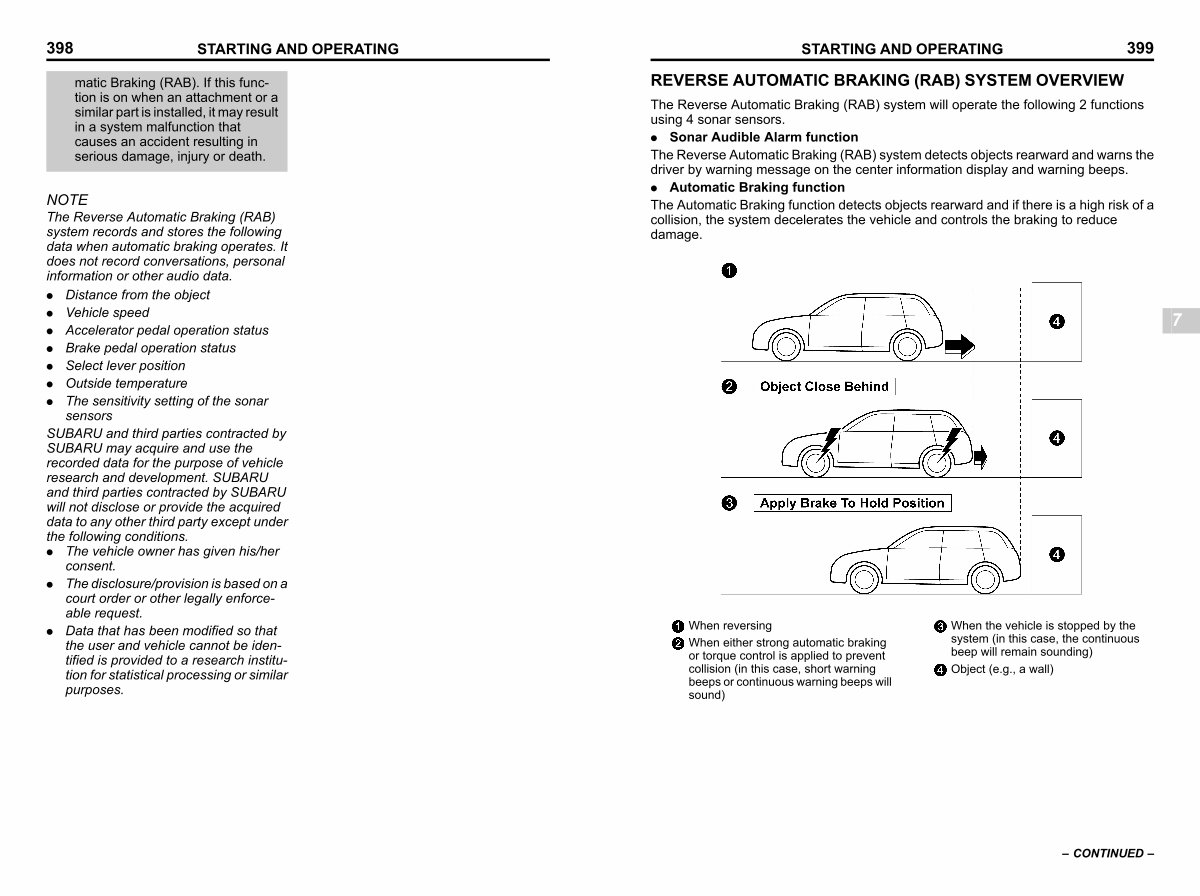

STARTING AND OPERATING 399 REVERSE AUTOMATIC BRAKING( RAB) SYSTEM OVERVIEW s07bn01
The Reverse Automatic Braking( RAB) system will operate the following 2 functions using 4 sonar sensors.
. Sonar Audible Alarm function
The Reverse Automatic Braking( RAB) system detects objects rearward and warns the driver by warning message on the center information display and warning beeps.
. Automatic Braking function
The Automatic Braking function detects objects rearward and if there is a high risk of a collision, the system decelerates the vehicle and controls the braking to reduce damage.
7
S _ 703293-MW
When reversing
When either strong automatic braking or torque control is applied to prevent collision( in this case, short warning beeps or continuous warning beeps will sound)
When the vehicle is stopped by the system( in this case, the continuous beep will remain sounding)
Object( e. g., a wall)
– CONTINUED –
