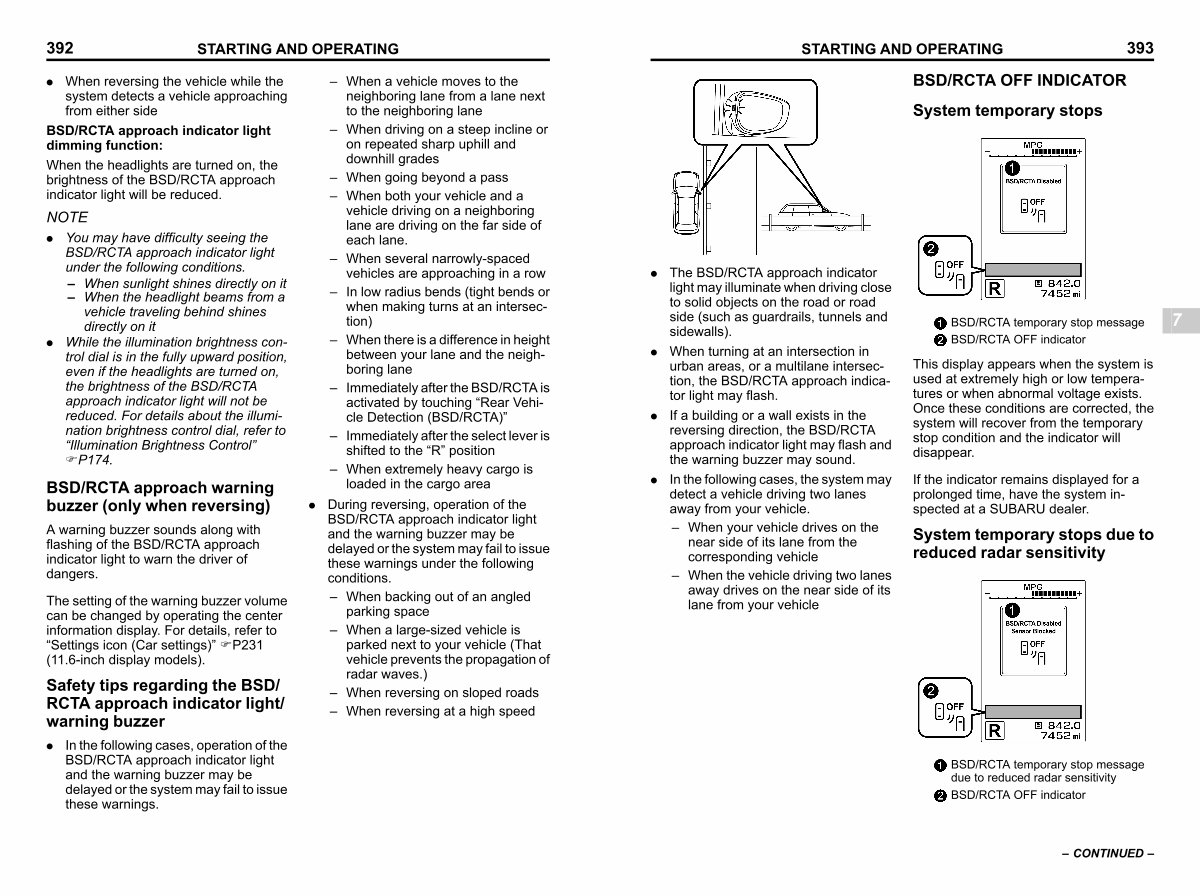

STARTING AND OPERATING 393
BSD / RCTA OFF INDICATOR s07bm08
System temporary stops s07bm0801
S _ 703176-W
. The BSD / RCTA approach indicator light may illuminate when driving close to solid objects on the road or road side( such as guardrails, tunnels and sidewalls).
. When turning at an intersection in urban areas, or a multilane intersection, the BSD / RCTA approach indicator light may flash.
. If a building or a wall exists in the reversing direction, the BSD / RCTA approach indicator light may flash and the warning buzzer may sound.
. In the following cases, the system may detect a vehicle driving two lanes away from your vehicle.
– When your vehicle drives on the near side of its lane from the corresponding vehicle
– When the vehicle driving two lanes away drives on the near side of its lane from your vehicle
S _ 703289-W
BSD / RCTA temporary stop message BSD / RCTA OFF indicator
This display appears when the system is used at extremely high or low temperatures or when abnormal voltage exists. Once these conditions are corrected, the system will recover from the temporary stop condition and the indicator will disappear.
If the indicator remains displayed for a prolonged time, have the system inspected at a SUBARU dealer.
System temporary stops due to reduced radar sensitivity s07bm0802
7
S _ 703290-W
BSD / RCTA temporary stop message due to reduced radar sensitivity
BSD / RCTA OFF indicator
– CONTINUED –
