STARTING AND OPERATING 381
Front view |
s07bu0303 |
Rear view |
s07bu0305 |
Guiding lines
S _ 703276-W

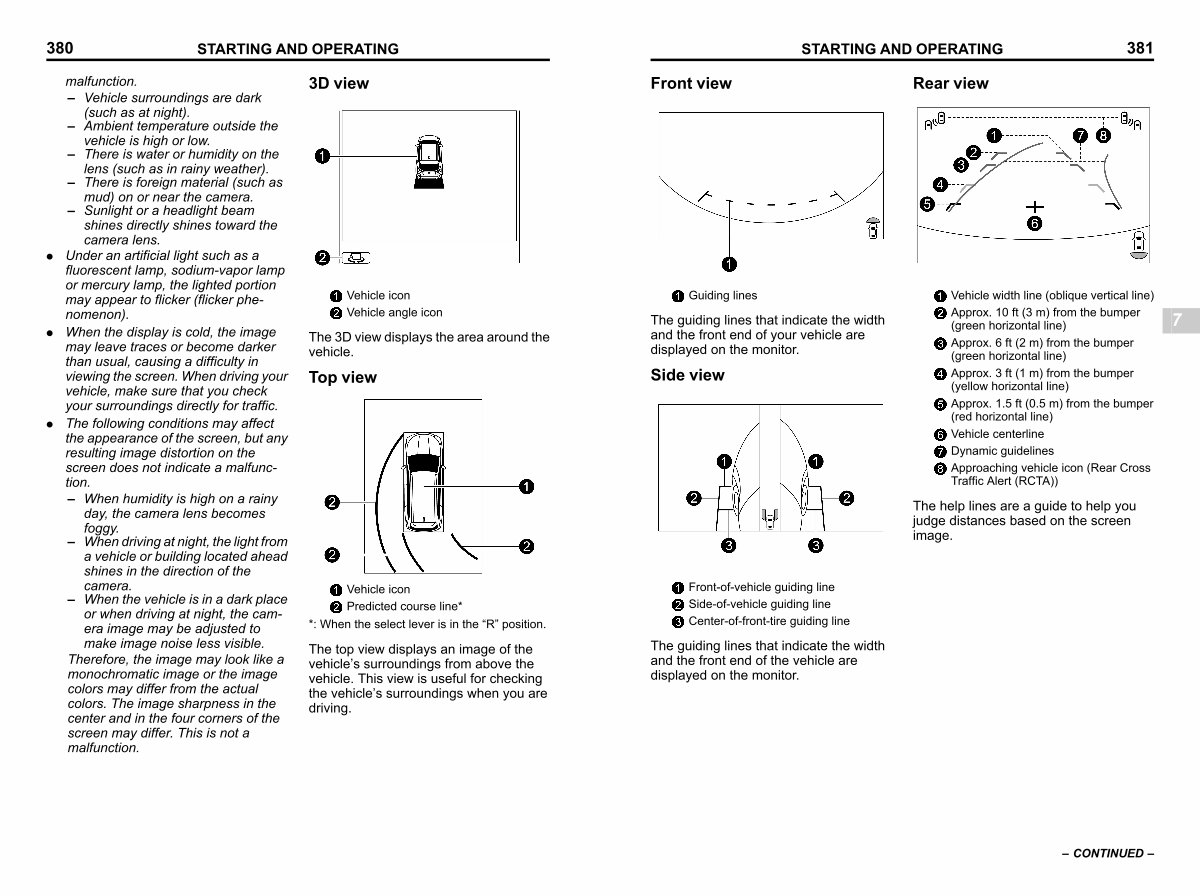

The guiding lines that indicate the width and the front end of your vehicle are displayed on the monitor.
Side view s07bu0304
S _ 703278-W
Vehicle width line( oblique vertical line)
Approx. 10 ft( 3 m) from the bumper( green horizontal line)
Approx. 6 ft( 2 m) from the bumper( green horizontal line)
Approx. 3 ft( 1 m) from the bumper( yellow horizontal line)
Approx. 1.5 ft( 0.5 m) from the bumper( red horizontal line)
Vehicle centerline Dynamic guidelines
Approaching vehicle icon( Rear Cross Traffic Alert( RCTA))
The help lines are a guide to help you judge distances based on the screen image.
7
S _ 703277-W
Front-of-vehicle guiding line Side-of-vehicle guiding line Center-of-front-tire guiding line
The guiding lines that indicate the width and the front end of the vehicle are displayed on the monitor.
