INSTRUMENTS AND CONTROLS 267

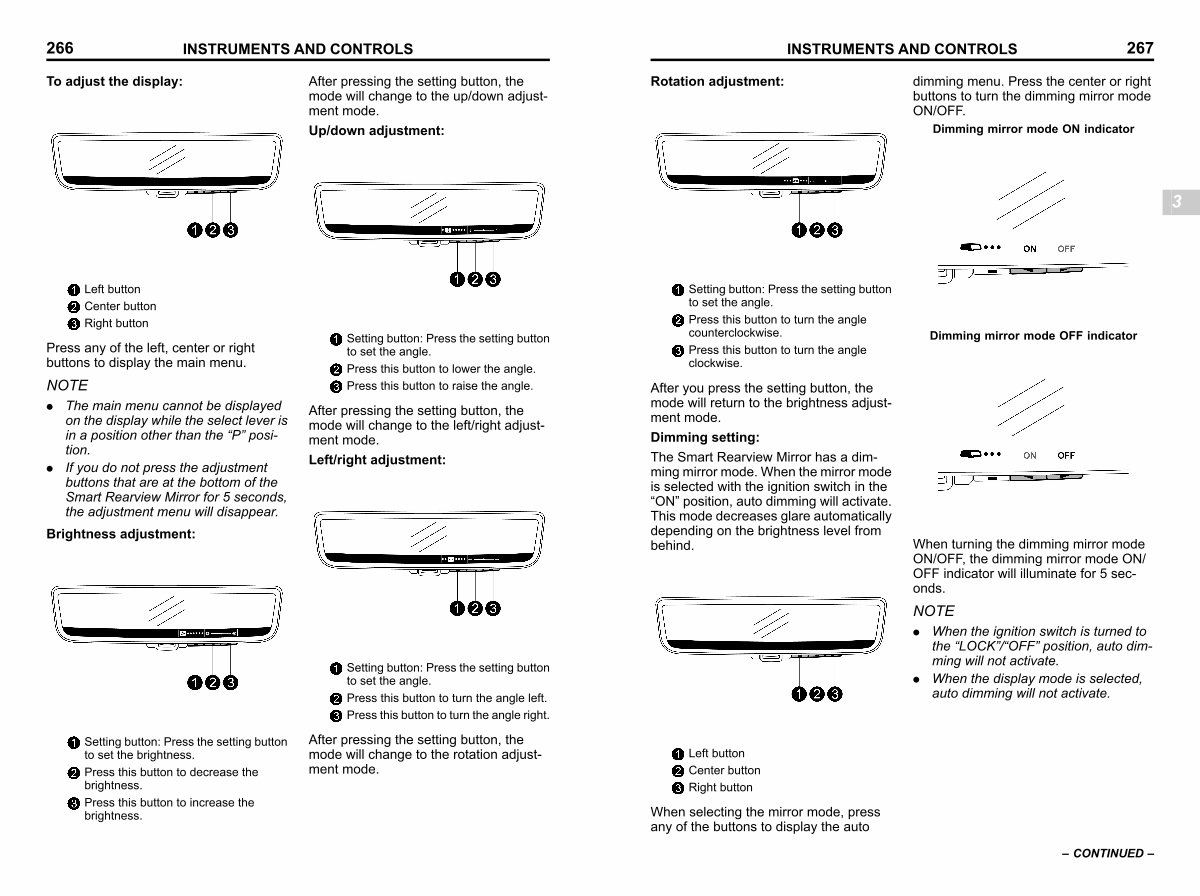

Rotation adjustment:
dimming menu. Press the center or right buttons to turn the dimming mirror mode ON / OFF.
Dimming mirror mode ON indicator
3
S _ 307942-W
Setting button: Press the setting button to set the angle.
Press this button to turn the angle counterclockwise.
Press this button to turn the angle clockwise.
After you press the setting button, the mode will return to the brightness adjustment mode.
Dimming setting:
The Smart Rearview Mirror has a dimming mirror mode. When the mirror mode is selected with the ignition switch in the“ ON” position, auto dimming will activate. This mode decreases glare automatically depending on the brightness level from behind.
S _ 307712-W
Dimming mirror mode OFF indicator
S _ 307713-W
When turning the dimming mirror mode ON / OFF, the dimming mirror mode ON / OFF indicator will illuminate for 5 seconds.
NOTE
. When the ignition switch is turned to the“ LOCK”/“ OFF” position, auto dimming will not activate.
. When the display mode is selected, auto dimming will not activate.
S _ 307938-W
Left button Center button Right button
When selecting the mirror mode, press any of the buttons to display the auto
– CONTINUED –
