INSTRUMENTS AND CONTROLS 265

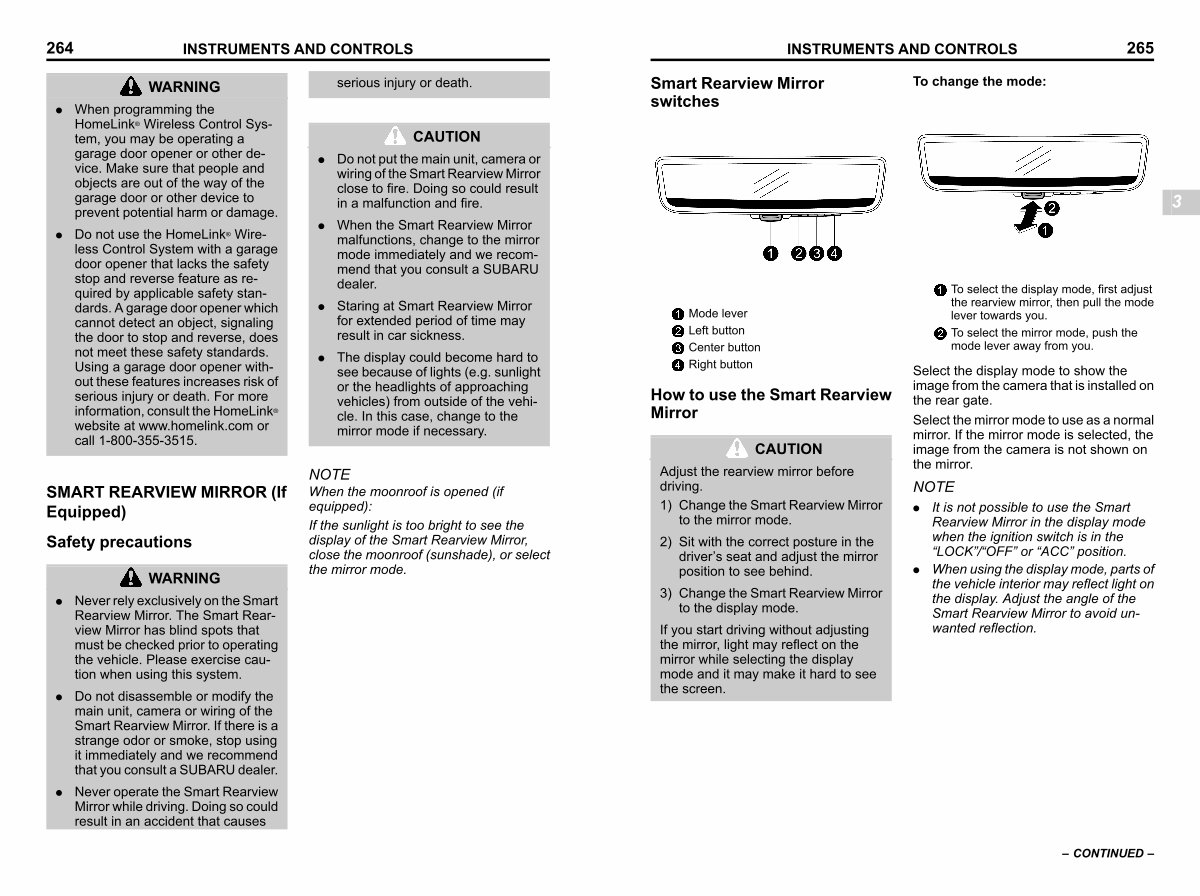

Smart Rearview Mirror switches s03ap1102
To change the mode:
3
S _ 307937-W
Mode lever Left button Center button Right button
S _ 307936-W
How to use the Smart Rearview Mirror s03ap1103
CAUTION
Adjust the rearview mirror before driving.
1) Change the Smart Rearview Mirror to the mirror mode.
2) Sit with the correct posture in the driver’ s seat and adjust the mirror position to see behind.
3) Change the Smart Rearview Mirror to the display mode.
If you start driving without adjusting the mirror, light may reflect on the mirror while selecting the display mode and it may make it hard to see the screen.
To select the display mode, first adjust the rearview mirror, then pull the mode lever towards you.
To select the mirror mode, push the mode lever away from you.
Select the display mode to show the image from the camera that is installed on the rear gate.
Select the mirror mode to use as a normal mirror. If the mirror mode is selected, the image from the camera is not shown on the mirror.
NOTE
. It is not possible to use the Smart Rearview Mirror in the display mode when the ignition switch is in the“ LOCK”/“ OFF” or“ ACC” position.
. When using the display mode, parts of the vehicle interior may reflect light on the display. Adjust the angle of the Smart Rearview Mirror to avoid unwanted reflection.
– CONTINUED –
