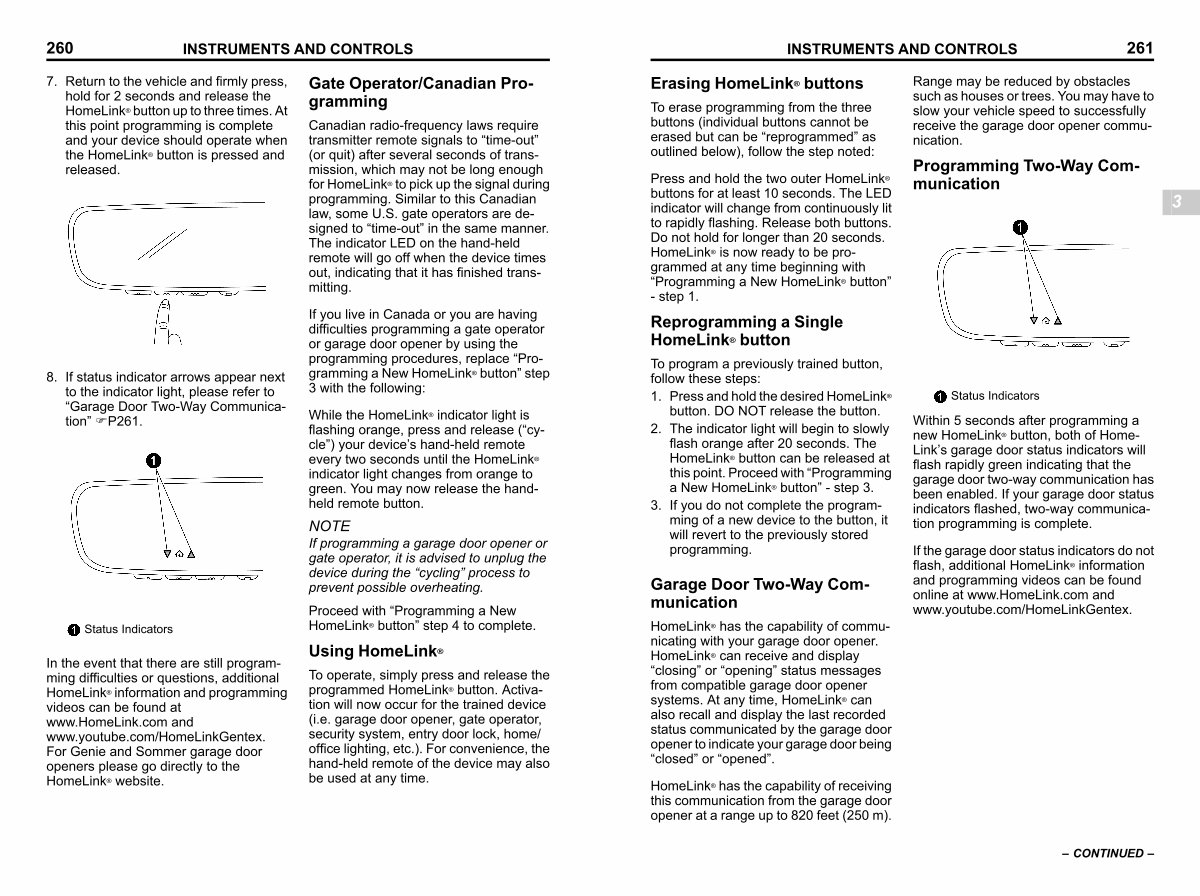

INSTRUMENTS AND CONTROLS 261
Erasing HomeLink ® buttons s03ap0710
To erase programming from the three buttons( individual buttons cannot be erased but can be“ reprogrammed” as outlined below), follow the step noted:
Press and hold the two outer HomeLink ® buttons for at least 10 seconds. The LED indicator will change from continuously lit to rapidly flashing. Release both buttons. Do not hold for longer than 20 seconds. HomeLink ® is now ready to be programmed at any time beginning with“ Programming a New HomeLink ® button”- step 1.
Reprogramming a Single HomeLink ® button s03ap0711
To program a previously trained button, follow these steps:
1. Press and hold the desired HomeLink ® button. DO NOT release the button.
2. The indicator light will begin to slowly flash orange after 20 seconds. The HomeLink ® button can be released at this point. Proceed with“ Programming a New HomeLink ® button”- step 3.
3. If you do not complete the programming of a new device to the button, it will revert to the previously stored programming.
Garage Door Two-Way Communication s03ap0712
HomeLink ® has the capability of communicating with your garage door opener. HomeLink ® can receive and display“ closing” or“ opening” status messages from compatible garage door opener systems. At any time, HomeLink ® can also recall and display the last recorded status communicated by the garage door opener to indicate your garage door being“ closed” or“ opened”.
HomeLink ® has the capability of receiving this communication from the garage door opener at a range up to 820 feet( 250 m).
Range may be reduced by obstacles such as houses or trees. You may have to slow your vehicle speed to successfully receive the garage door opener communication.
Programming Two-Way Communication s03ap0713
Status Indicators
S _ 307933-W
Within 5 seconds after programming a new HomeLink ® button, both of Home- Link’ s garage door status indicators will flash rapidly green indicating that the garage door two-way communication has been enabled. If your garage door status indicators flashed, two-way communication programming is complete.
If the garage door status indicators do not flash, additional HomeLink ® information and programming videos can be found online at www. HomeLink. com and www. youtube. com / HomeLinkGentex.
3
– CONTINUED –
