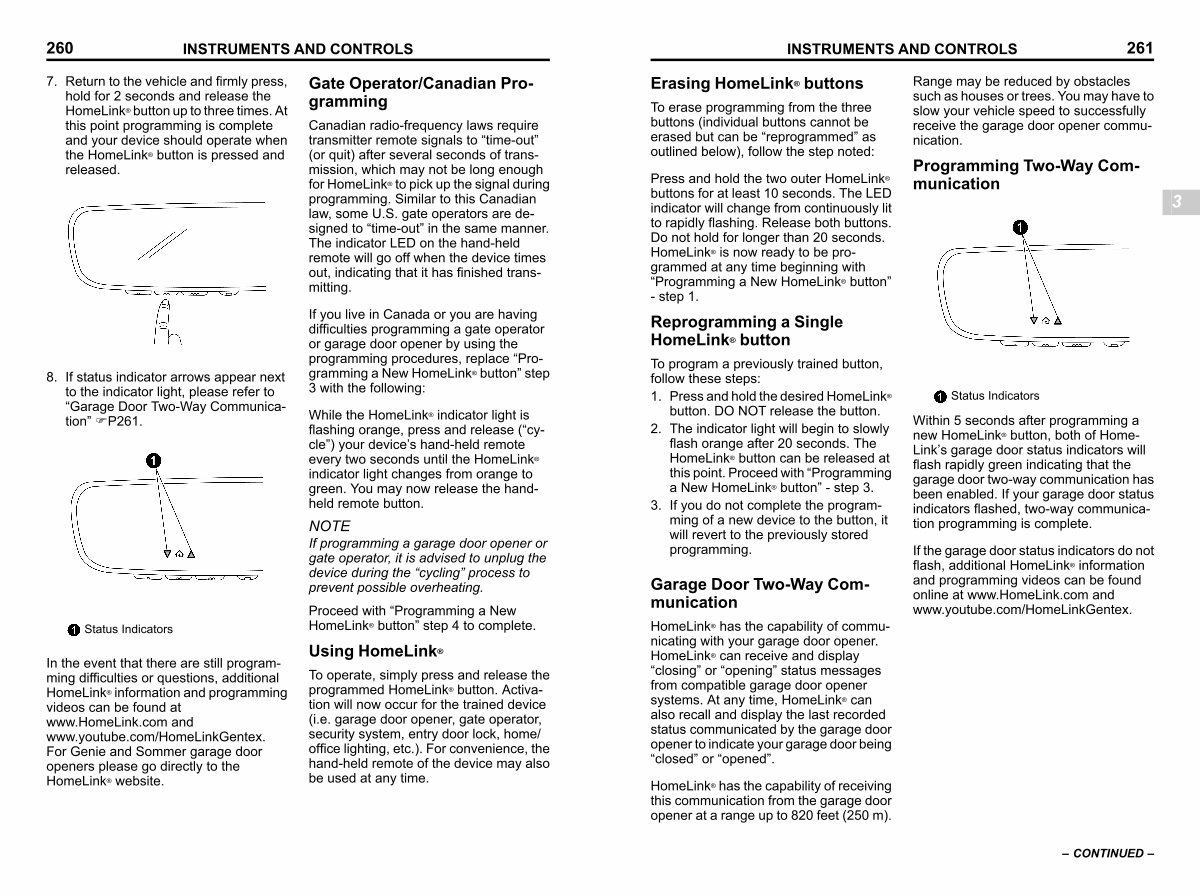

260
INSTRUMENTS AND CONTROLS
7. Return to the vehicle and firmly press, hold for 2 seconds and release the HomeLink ® button up to three times. At this point programming is complete and your device should operate when the HomeLink ® button is pressed and released.
S _ 307668-W
8. If status indicator arrows appear next to the indicator light, please refer to“ Garage Door Two-Way Communication” FP261.
Status Indicators
S _ 307932-W
In the event that there are still programming difficulties or questions, additional HomeLink ® information and programming videos can be found at www. HomeLink. com and www. youtube. com / HomeLinkGentex. For Genie and Sommer garage door openers please go directly to the HomeLink ® website.
Gate Operator / Canadian Programming s03ap0708
Canadian radio-frequency laws require transmitter remote signals to“ time-out”( or quit) after several seconds of transmission, which may not be long enough for HomeLink ® to pick up the signal during programming. Similar to this Canadian law, some U. S. gate operators are designed to“ time-out” in the same manner. The indicator LED on the hand-held remote will go off when the device times out, indicating that it has finished transmitting.
If you live in Canada or you are having difficulties programming a gate operator or garage door opener by using the programming procedures, replace“ Programming a New HomeLink ® button” step 3 with the following:
While the HomeLink ® indicator light is flashing orange, press and release(“ cycle”) your device’ s hand-held remote every two seconds until the HomeLink ® indicator light changes from orange to green. You may now release the handheld remote button.
NOTE
If programming a garage door opener or gate operator, it is advised to unplug the device during the“ cycling” process to prevent possible overheating.
Proceed with“ Programming a New HomeLink ® button” step 4 to complete.
Using HomeLink ® s03ap0709
To operate, simply press and release the programmed HomeLink ® button. Activation will now occur for the trained device( i. e. garage door opener, gate operator, security system, entry door lock, home / office lighting, etc.). For convenience, the hand-held remote of the device may also be used at any time.
